Bluetooth Module & App - V2

Code: SYV-BLU

Syvecs Telemetry Bluetooth Module is designed for use with Apple and Android Devices. Enabling users to view custom configurable data on there portable devices. This data can then be viewed in a series of gauges which can be setup based on the customers personal preference all done via the mobile device.

In Stock

Description



The Syvecs Bluetooth Module is designed for use with both Apple and Android Devices.

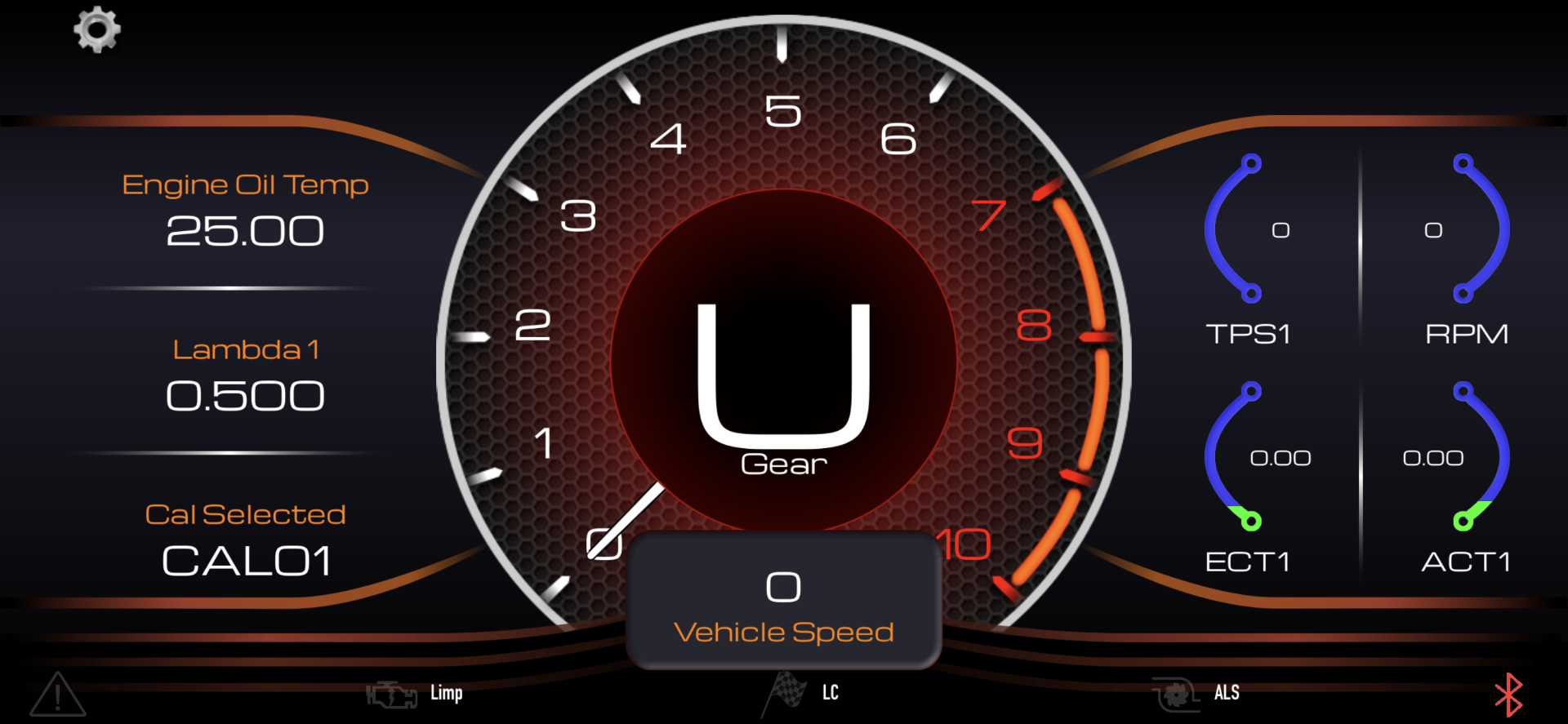

Enabling users to view custom configurable data on there portable devices. This data can then be viewed either in a series of gauges or dash layouts and is all configurable via the application.

Designed to work with any Syvecs ECU or one of our Plug N Play Kits, the Syvecs Bluetooth App allows users full control of the RS232/Can Stream selection to suit any CAN or RS232 Layout used.

Users can set warnings, shift lights, change calibration selections on the ECU, adjust traction control settings and much more.

A performance section also allows stats on acceleration data from the vehicle using the mobile devices on-board GPS or via the speed signals from the Syvecs ECU. These can be saved to a set vehicle type and view-able again in the garage section of the application.

A selection of the viewable informantion:

RPM
Speed
Manifold Pressure
Ignition timing
Lambda
Fuel pressure
Oil Pressure
Oil Temp
Oil Level
Fuel Level
Gear
Ethanol/Methanol Content
Knock Retard Level
Limp Mode
Engine Actual Torque
Engine Demand Torque

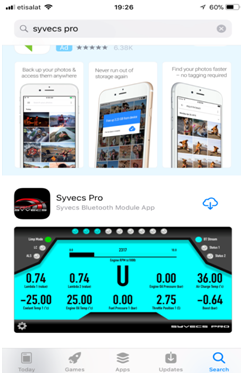

The Application that accompanies the V2 Module is free to download from both Apple and Android App stores. This will only work with the Syvecs Bluetooth Module.

Dimensions

150mm x 100mm x 35mm



Additional information

Installation Manual

http://www.syvecs.com/downloads/Syvecs_Bluetooth_Module.pdf
