Description
Introduction

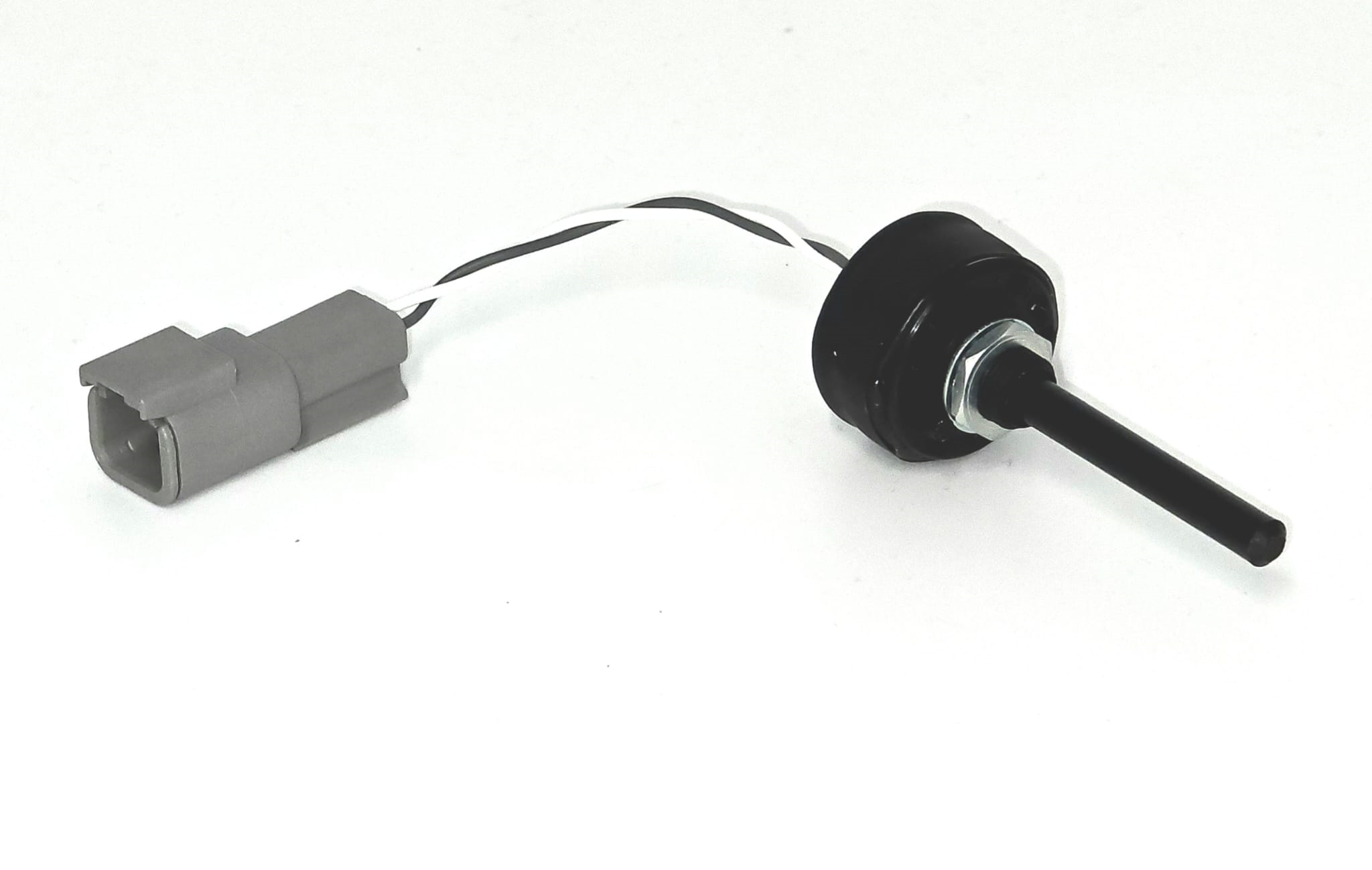

The Syvecs Calibration Switch is a simple universal multi-position switch used for map switching on almost any after-market ECU.
The Syvecs Calibration Switch has the following hardware features:
-
Simple 2 wire connection.
-
Up to 11 positions from a 5v external pull up.
-

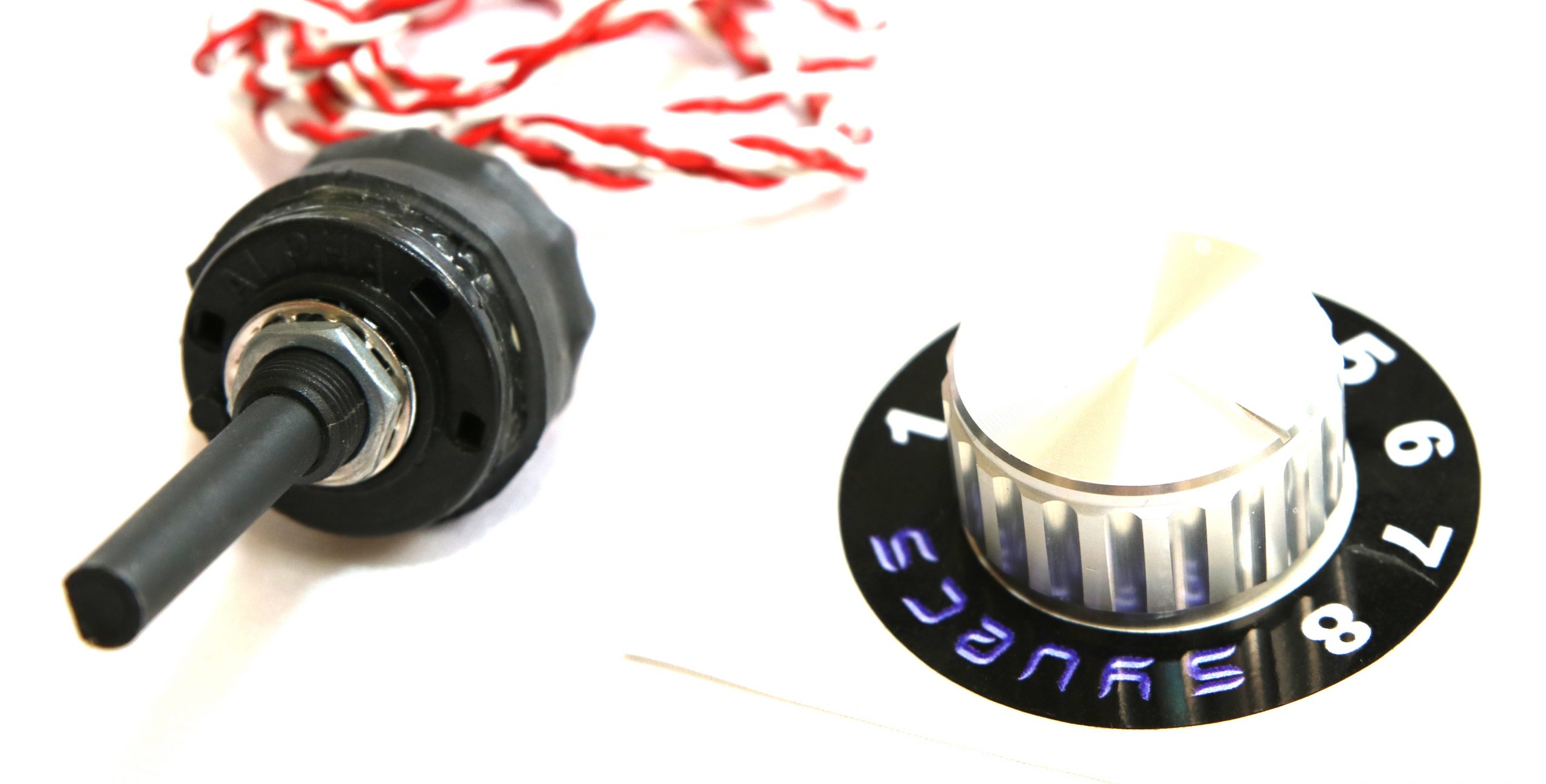

Adjustable detent lockout ring adjustable from 2 to 11 positions.
-
Comes fitted with Deutsch 2 pin connector and supplied with mating pins and connector.
Specifications / Maximum Ratings
Outputs
11 positions via one signal wire.
Power Supply
5v – 3k Ohm Pull up required if no internal pull up is available. (Syvecs Unipolar and Thermistors inputs has 3k Pull up already)
Physical
Panel mount via 10mm hole.
Max panel thickness 4mm
Max external diameter 30mm
Max shaft length 42mm
Max overall length 75mm
Mating fly-lead length 80mm
