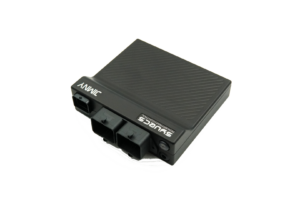

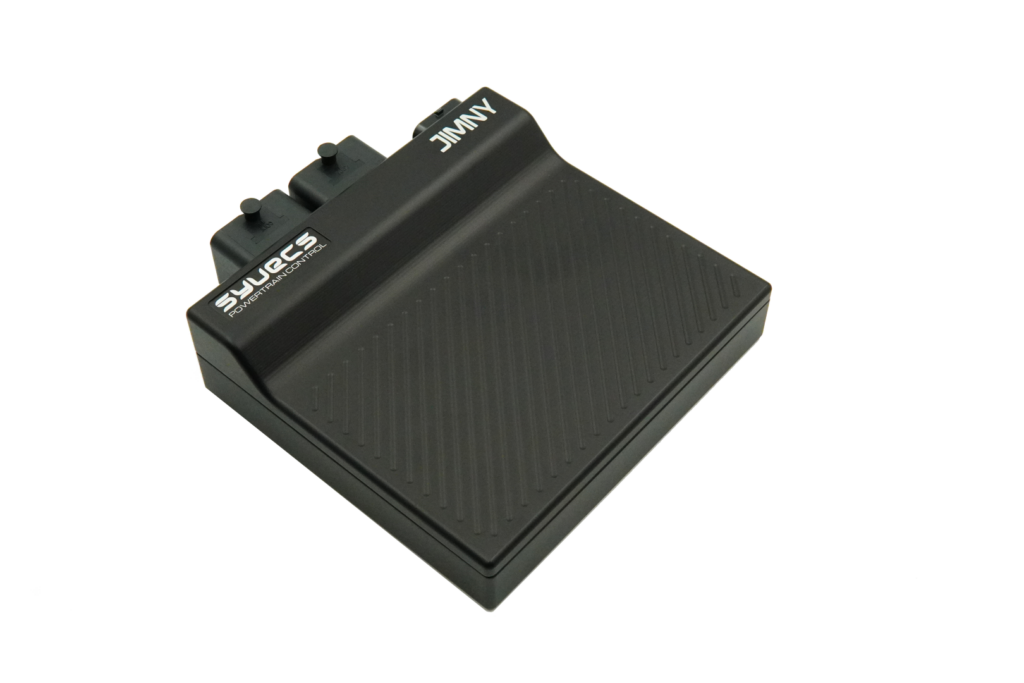

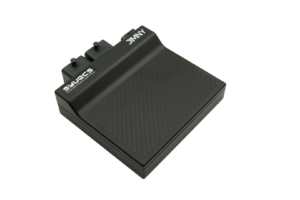

Syvecs Suzuki Jimny Sierra JB74 2018+ Plug in ECU

Code: S7i- JimnyDF

The Syvecs Suzuki Jimny Plug in ECU brings a new level of engine management control to the Suzuki Jimny range, available for the Manual and also Auto Transmission models.

In Stock

Description

The Syvecs Suzuki Jimny JB74 plug in ecu brings a new level of engine management control to the Suzuki Jimny range with a complete replacement Engine Control Module.

Supports both the manual and automatic transmission models.

The Syvecs Plug in kit comes complete with:

-NTK Lambda Sensor

-NTK Loom

-4Bar Map Sensor

-Air Charge Temperature Sensor



By simply plugging in the kit, a whole new level of control is available which allows turbo and supercharger installations to be safely managed and controlled.

Syvecs Jimny Features:

- Flat Shift/GearCut On Manual Transmission. Allowing Full throttle shifts

- Rev matching on downshift with manual transmission

- Support for automatic transmission with monitoring of line pressure and custom torque reductions.

- Flex Fuel control.

- Fully functional with every other module on the Car.

- 8 Injector support

- Forced induction support, requires External Map sensor and Air Charge Temp sensor

- Closed loop Lambda control using supplied NTK Lambda

- DBW support with cruise control (Option only if the correct parts are fitted)

- Rolling antilag / pit lane limiter strategies, great for building boost on a roll.

- Adjustable traction control strategies based on lateral G and individual wheel speed monitoring.

- Adjustable launch control.

- Limp Protection strategies

- 12 switchable maps with the ability to select desired engine map, boost level, traction and launch control levels through optional rotary switch

- Individual Cylinder Knock control

- Live tuning of every aspect of the engine’s calibration.

- Fully adjustable closed loop boost control with launch level adjustments and trims for turbo speed, air charge, engine coolant temp, exhaust gas temps etc..

- Built in data logging using a market leading analysis software of up to 8 hours, with data rates at up to 1000hz.

- Anti-theft and valet modes.

- Super fast connection via RJ45 Ethernet port for live tuning anywhere in the world or even remotely if on track if connected to one of our Wifi modules.

- Configurable engine safety trips on all important parameters like oil temperature, oil pressure.

- Fuel pump control of both main, and sub pumps, as well as relative fuel pressure monitoring and limiting in the event of fuel pressure dropping on boost.

- Run up to 7bar map sensors.

- Control high or low impendence injectors.

- Ability to fit any type of external sensor to monitor and trigger safety trips from anything from crank case pressure to damper position.

- Ability to use any size DBW throttle body e.g. Chevrolet LS7.

- Wet and Dry – Wet and dry nitrous control with ability to drive solenoids directly and control n20 heaters via pressure monitoring.

- Ability to control any external vehicle features based on sensor inputs e.g. Adjustable rear wing linked to G force or exhaust control valves.

- Connect any race series dash or even one of our Syvecs edition SDM display units.

- View any input live with built in scope up to 1000hz.

And much, much more!





Additional information

Installation Manual

http://www.syvecs.com/downloads/Syvecs_Suzuki_Jimny.pdf

Software

http://www.syvecs.com/forum/viewtopic.php?f=8&t=122
