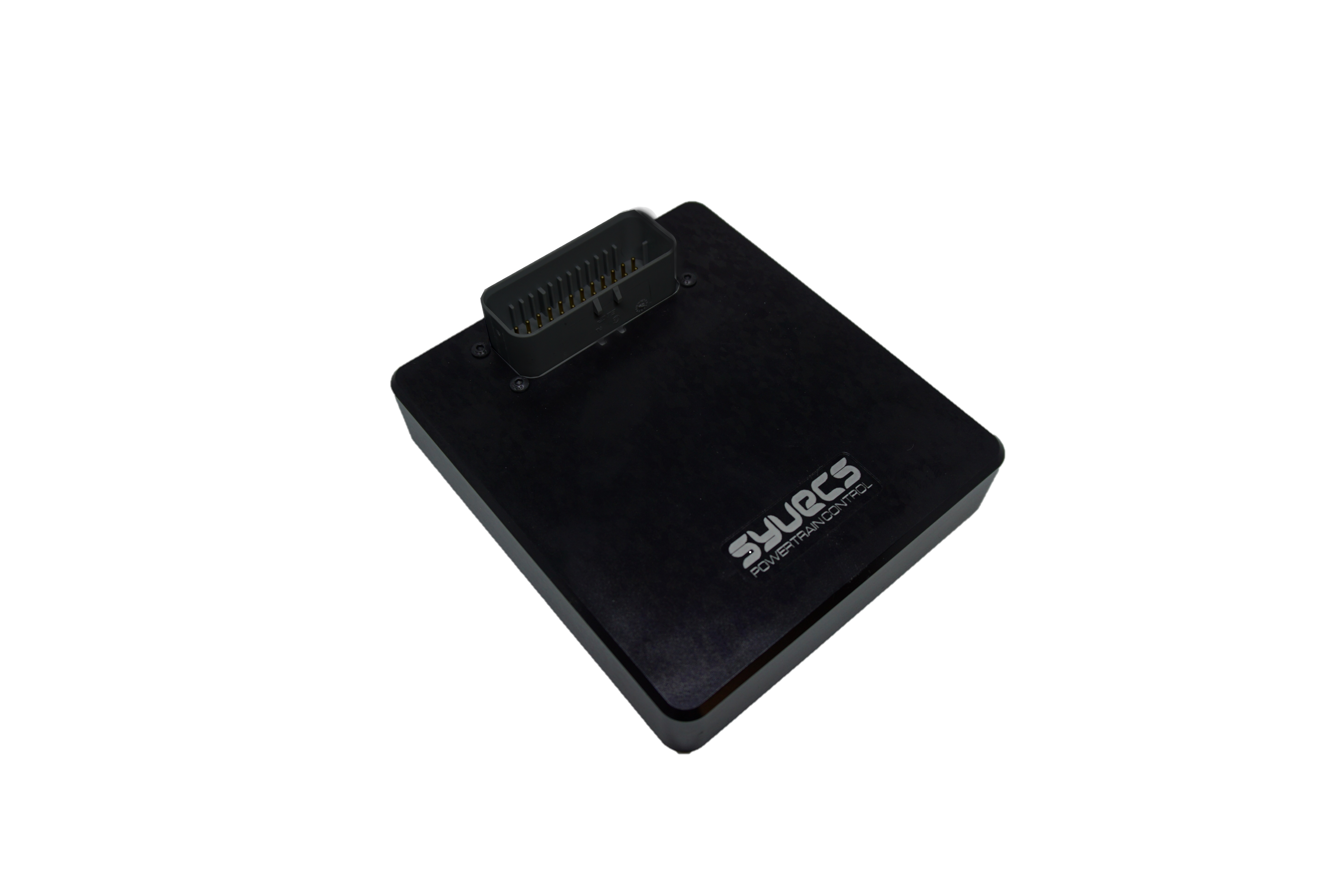

Syvecs X10 Expander [LEGACY]

Code: SYV-IO10

Syvecs Input/Output expansion units are designed to offer more I/O allowing customers to maximises other strategies on the Syvecs range, or allow more sensors/parameters to be logged via Datalogging . CAN Interfaces provide communication to ECU’s or Displays

In Stock

Description

X10 Expander  -

Outputs

 10 Low side and / or High side outputs (circa 15A each)

4 Half Bridge Outputs (combinable for 2 Full Bridges, etc)

Inputs

10 Analogue or switch inputs (0-5V, Thermistor or switch)

6 of the inputs capable of speed measurement

Interfaces

Ethernet for pc configuration and monitoring connection

2 x CAN 2.0B interface for communication with other controllers or logging systems

Power Supply

6 to 26V input voltage range

Physical

35 way AMP Ampseal male connector

PCB 130 x 115mm



Additional information

Installation Manual

http://www.syvecs.com/downloads/Syvecs_X10_Pinouts.pdf
