Description

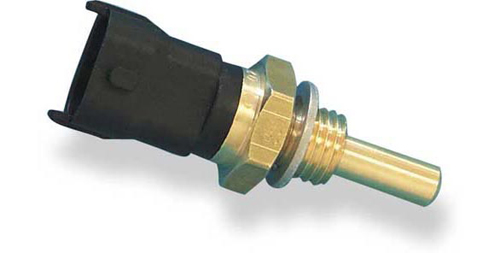

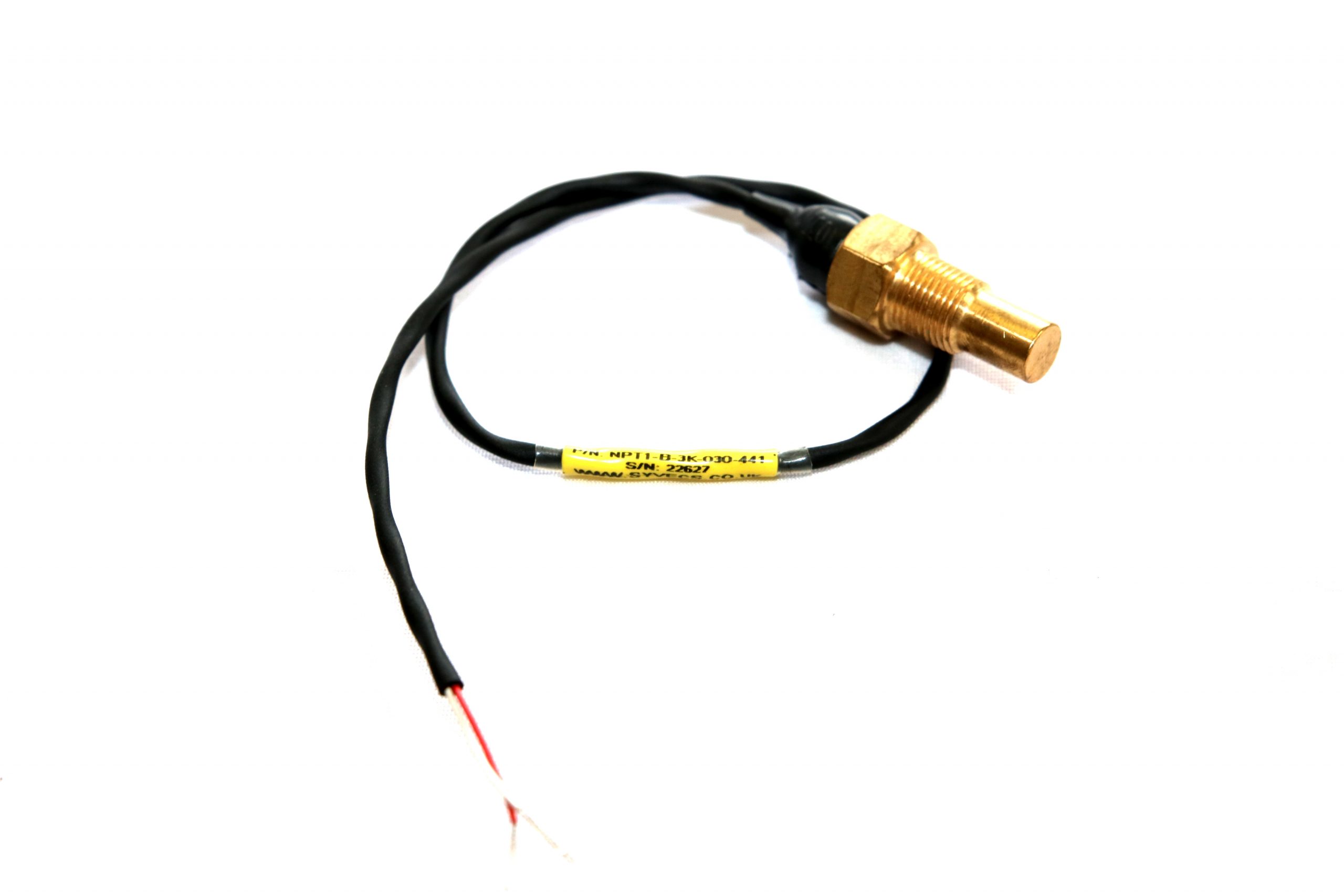

The Syvecs Fluid temperature sensor is engineered to measure fluid temperatures—such as oil,
water, or fuel. Its negative temperature coefficient (NTC) sensing element decreases resistance as
temperature increases, enhancing conductivity.
water, or fuel. Its negative temperature coefficient (NTC) sensing element decreases resistance as
temperature increases, enhancing conductivity.
Key Features:
Temperature Range: Operates effectively between -40°C and 150°C.
Accuracy: ±1.4°C at 25°C; ±0.8°C at 100°C.
Nominal Resistance: 2.5 kΩ ±6% at 20°C.
Response Time: Less than 15 seconds (τ63) in still water.
Mechanical Specifications:
Male thread: M12 x 1.5
Wrench size: 19 mm
Installation torque: 18 Nm
Weight (without wire): 28.3 g
Sealing: Aluminum washer
Accuracy: ±1.4°C at 25°C; ±0.8°C at 100°C.
Nominal Resistance: 2.5 kΩ ±6% at 20°C.
Response Time: Less than 15 seconds (τ63) in still water.
Mechanical Specifications:
Male thread: M12 x 1.5
Wrench size: 19 mm
Installation torque: 18 Nm
Weight (without wire): 28.3 g
Sealing: Aluminum washer
Characteristic Application
|
T [°C] |
R [Ohm] |
|
-40 |
45,313 |
|
-30 |
26,114 |
|
-20 |
15,462 |
|
-10 |
9,397 |
|
0 |
5,896 |
|
10 |
3,792 |
|
20 |
2,500 |
|
30 |
1,707 |
|
40 |
1,175 |
|
50 |
834 |
|
60 |
596 |
|
70 |
436 |
|
80 |
323 |
|
90 |
243 |
|
100 |
187 |
|
110 |
144 |
|
120 |
113 |
|
130 |
89 |
|
140 |
71 |
|
150 |
57 |
Connectors and Wires
|
Connector |
Bosch Compact |
|
Mating connector |
D261.205.337-01 |
|
Pin 1 |
SIG+ |
|
Pin 2 |
SIG- |
