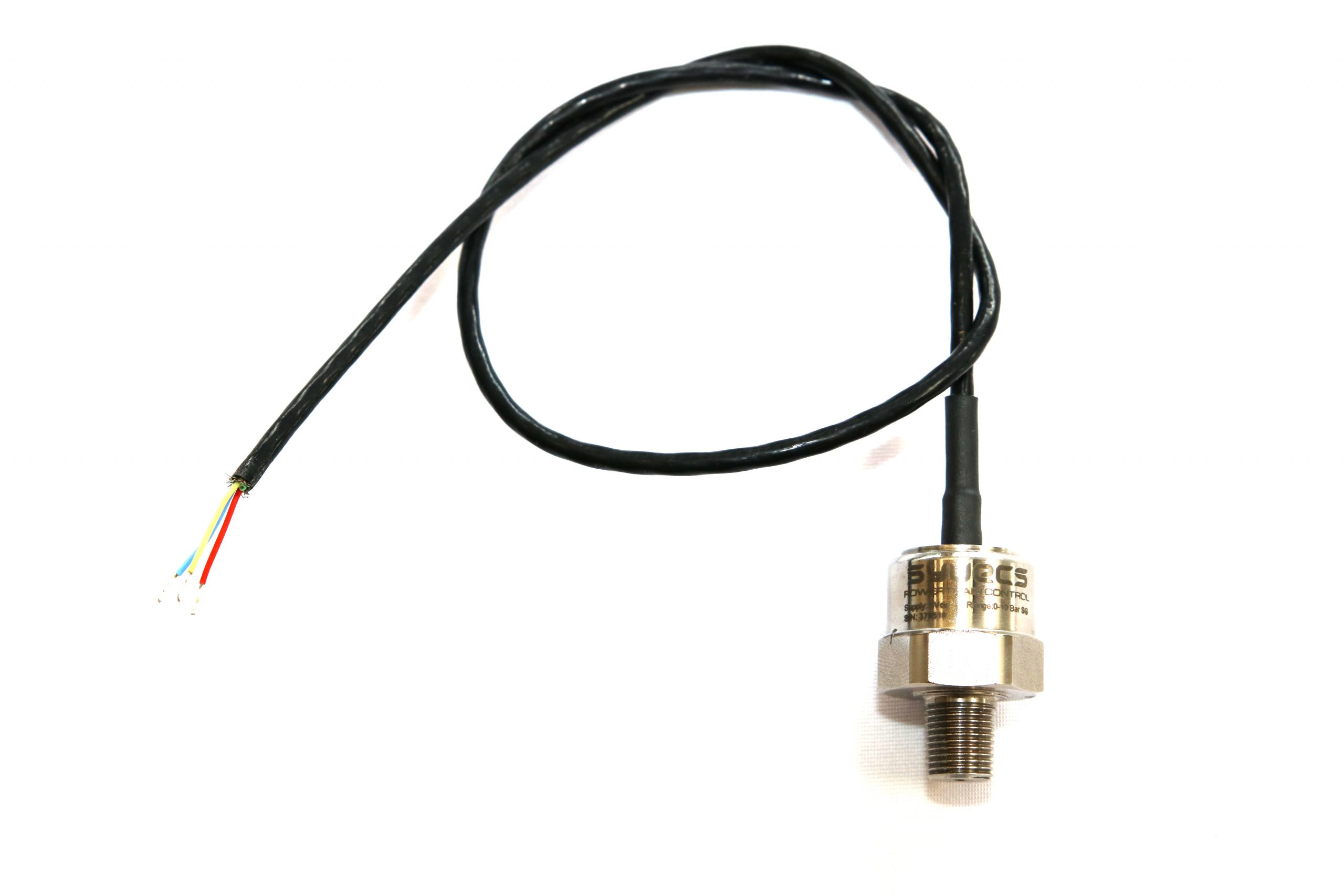

High Quality Fluid pressure sensor which work in Oil or Fuels
Technical Specification
| Process Connection | 1/8 Inch NPT Male |
| Safe Over Range | 150% of Range |
| Burst Pressure | >300% of Range |
| Accuracy | 0.5%FS |
| Thermal Effects | Zero +0.04% FS/C |
| Output | 0.5v to 4.5v |
| Supply | 5V |
| Operating Temp Range | |
| Construction | Stainless Steel |
| Electrical Connection | 50cm - 26AWG Screened Cable |
| Protection Class | IP67 |
| Weight | 34g |
| Installation Manual | http://www.syvecs.com/downloads/Syvecs_10Bar_Fluid_Pressure_Transducer.pdf |
|---|
The new Syvecs Wifi module is designed to work with our unique Ethernet protocol and allows calibrators/end users the luxury of being able to connect to our ECUs, expanders and dashes without the need of a physical connection.
This can be a godsend when dealing with cars in a race enviroment where access is needed quickly, most of our mappers are able to connect whilst sitting 10 to 15 ft away from the car. This allowes any other work to be carried out without getting in the way.
Each device has a unique SSID and Password allowing calibrators to connect to a number of cars without issues.
The Syvecs Calibration Switch is a simple universal multi-position switch used for map switching on almost any after-market ECU.
