Description
Introduction

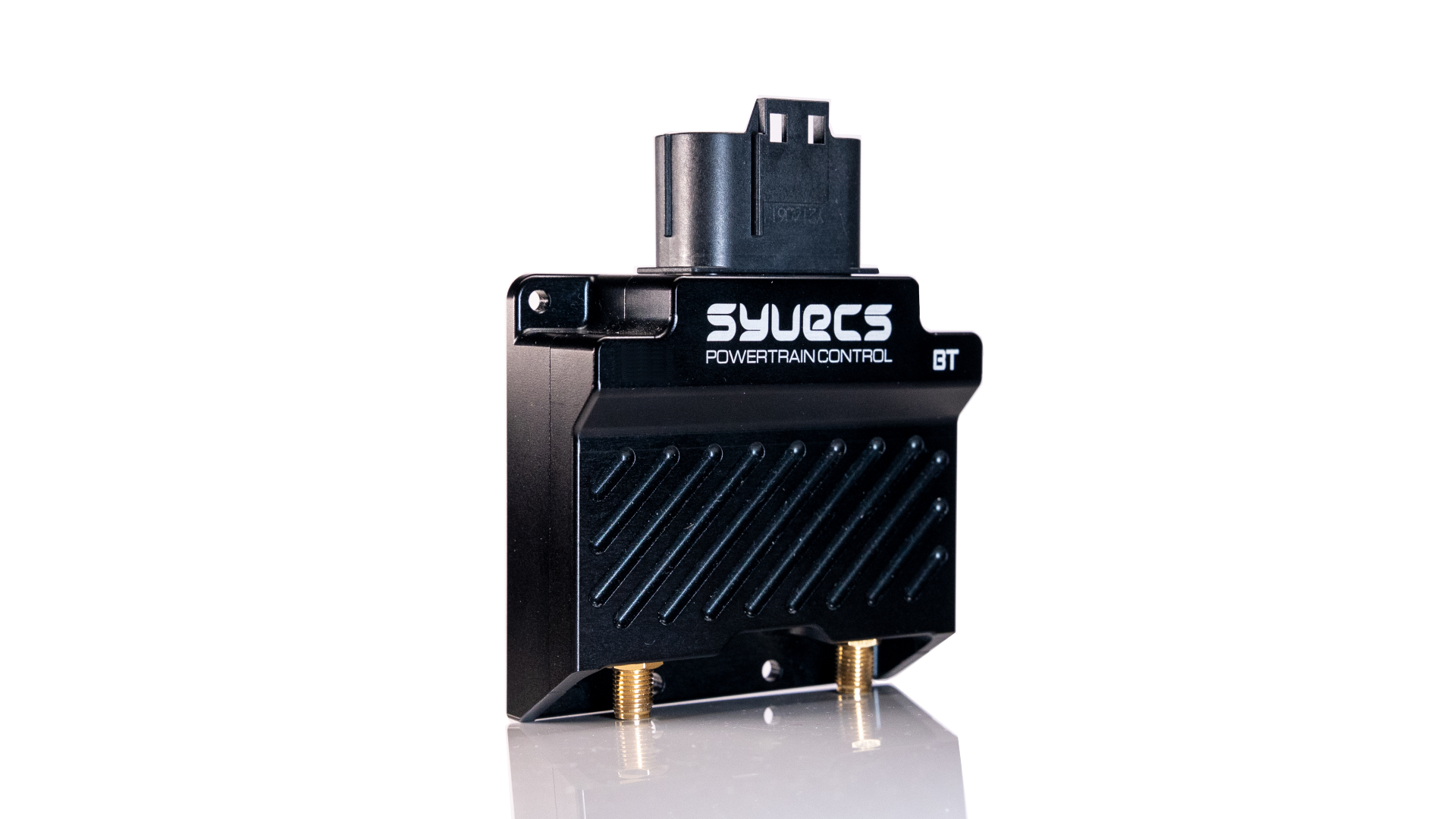

The new Syvecs BTIMU is a complete redesign of our original Bluetooth module, now featuring Bluetooth Low Energy (BLE) for faster pairing and CANBus support — including CAN FD — for higher data rates, improved flexibility, and broader compatibility compared to the legacy RS232-based module.
Designed for performance and reliability, the BTIMU integrates:
Dual CAN interfaces (standard and FD)
Four digital inputs and four low-side outputs
A built-in 6-axis IMU for precise acceleration and motion logging
BLE support for direct wireless connection to smartphones, tablets, or vehicle infotainment systems
OBD2 Support for use with OEM ECUs
When paired with the Syvecs Dash app, BTIMU delivers powerful real-time telemetry, seamless CANBus integration, customizable inputs/outputs, and fully configurable digital dashboards — giving you instant access to engine and vehicle data.
Rugged, backward compatible, and ready for motorsport or street use, the Syvecs BTIMU sets a new benchmark for mobile integration, control, and data visibility in high-performance applications.
Communication Options

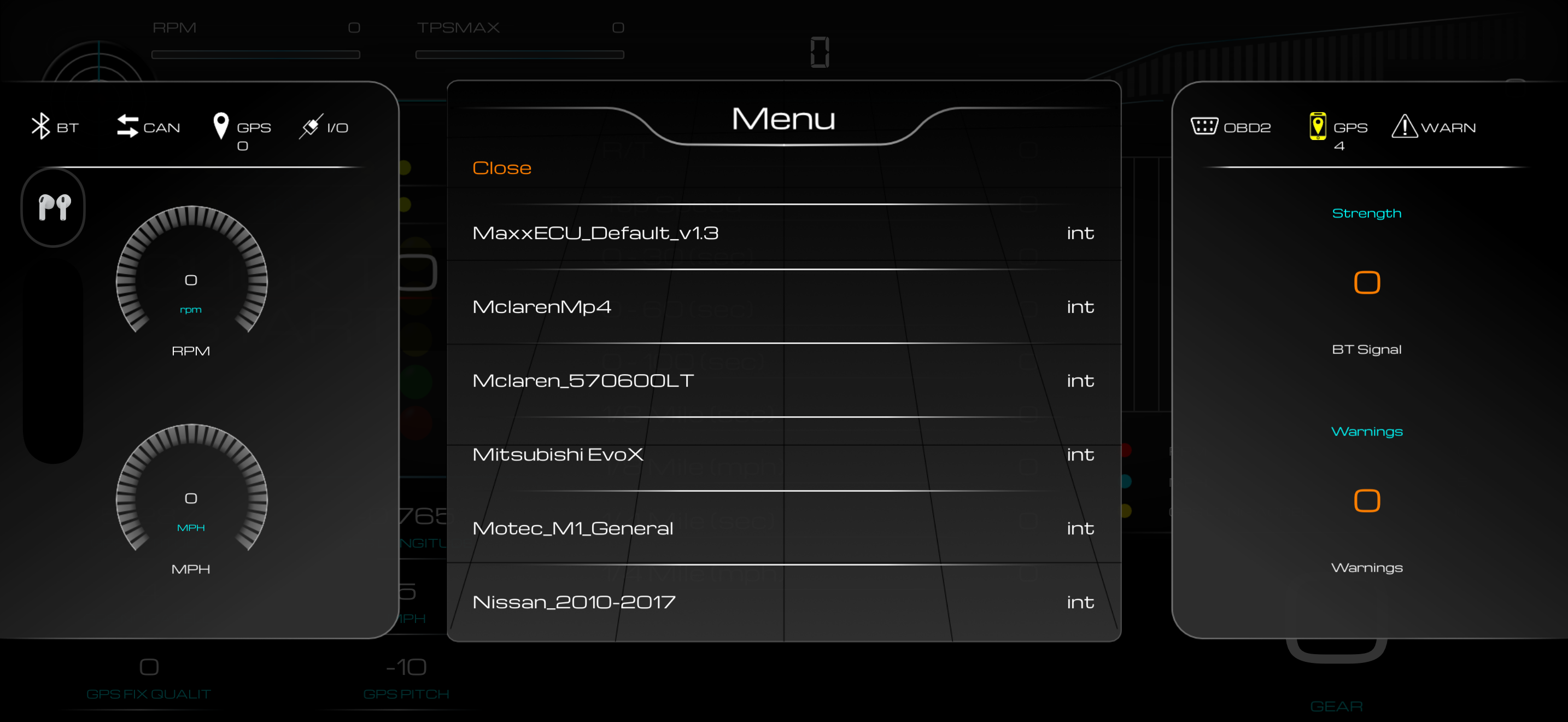

DBC Import Function
Supports importing any CAN DBC file
Instantly compatible with major ECU systems (Syvecs, MoTeC, Pectel, Link, etc.)

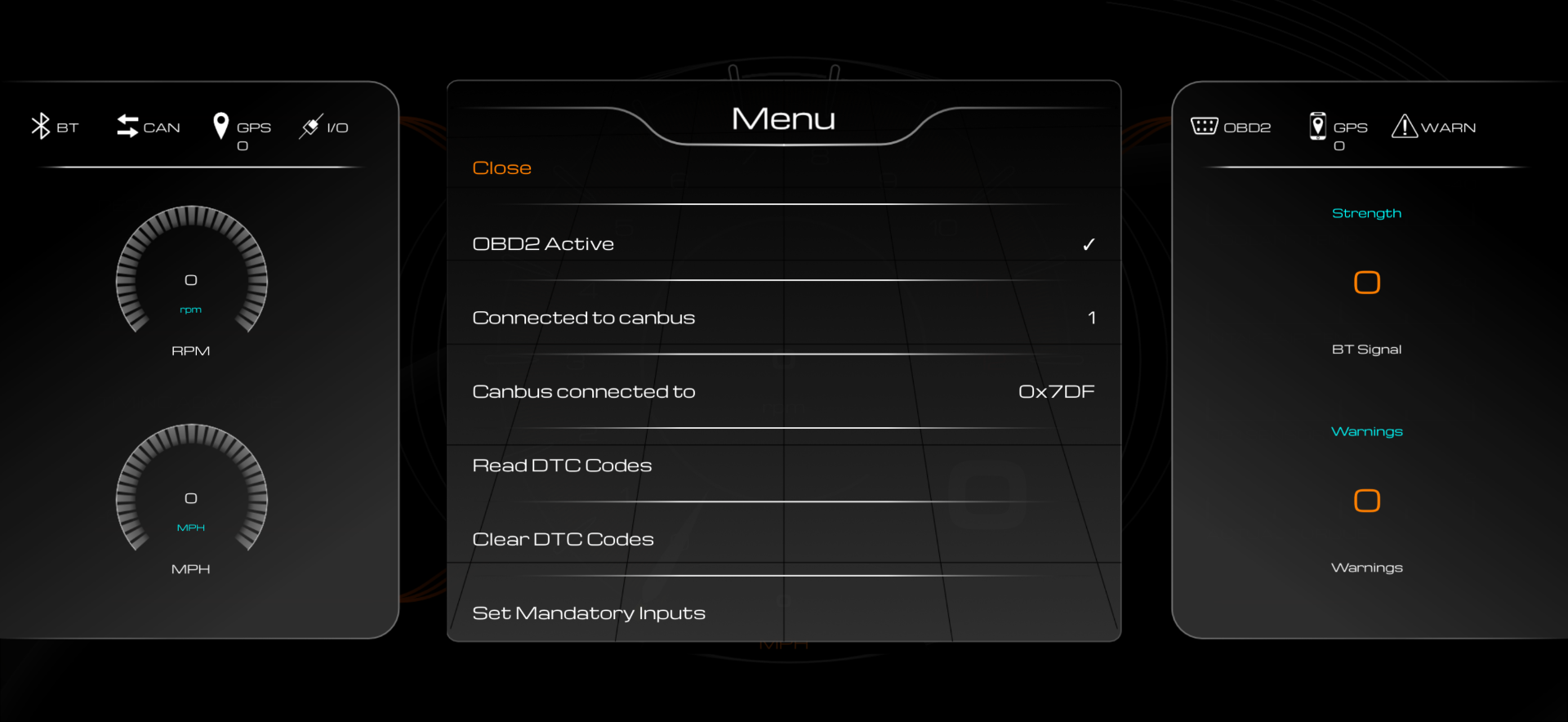

OBD-II Functionality
Read & clear DTCs (Diagnostic Trouble Codes) from any OBD-II–equipped vehicle
Real-time data monitoring via standard OBD-II PIDs up to 200hz update rate depending on car CAN type.

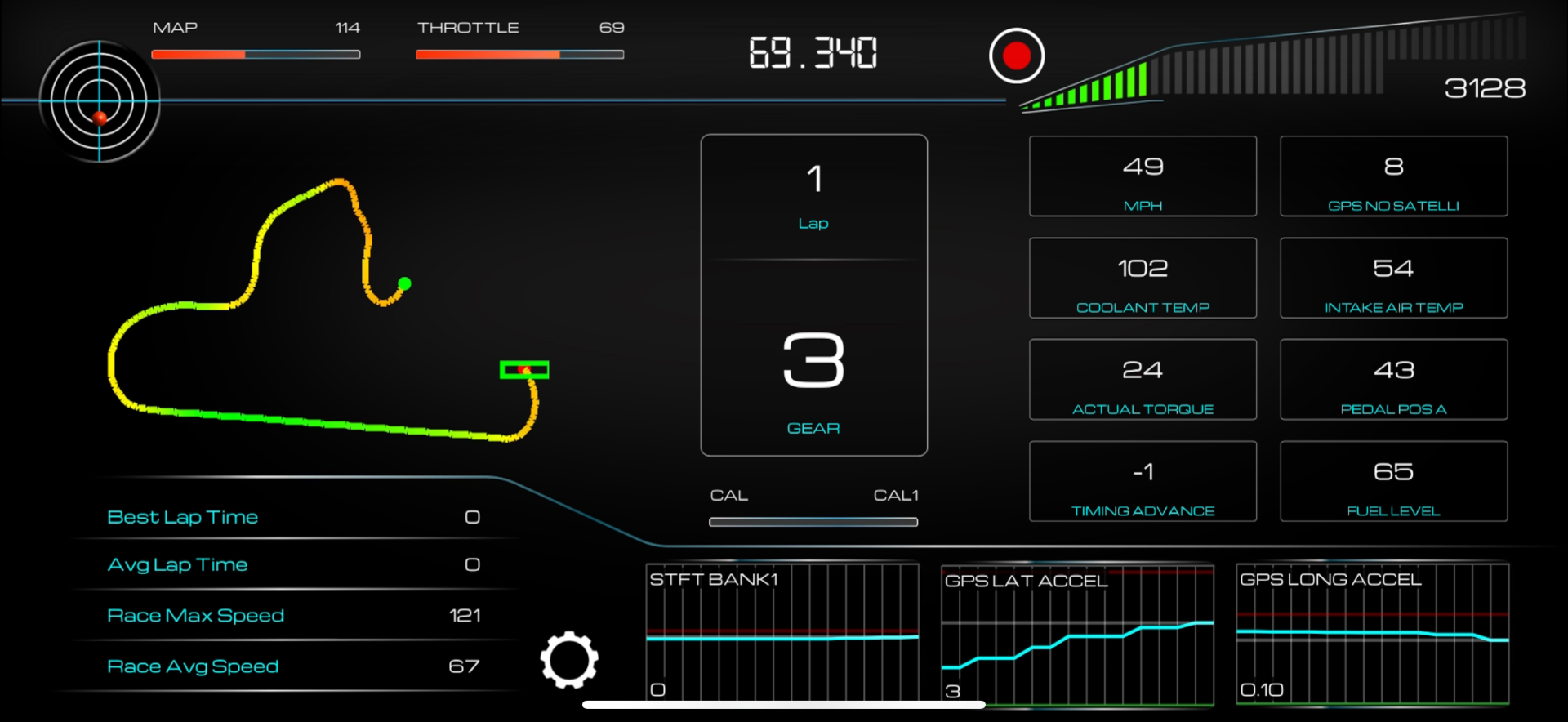

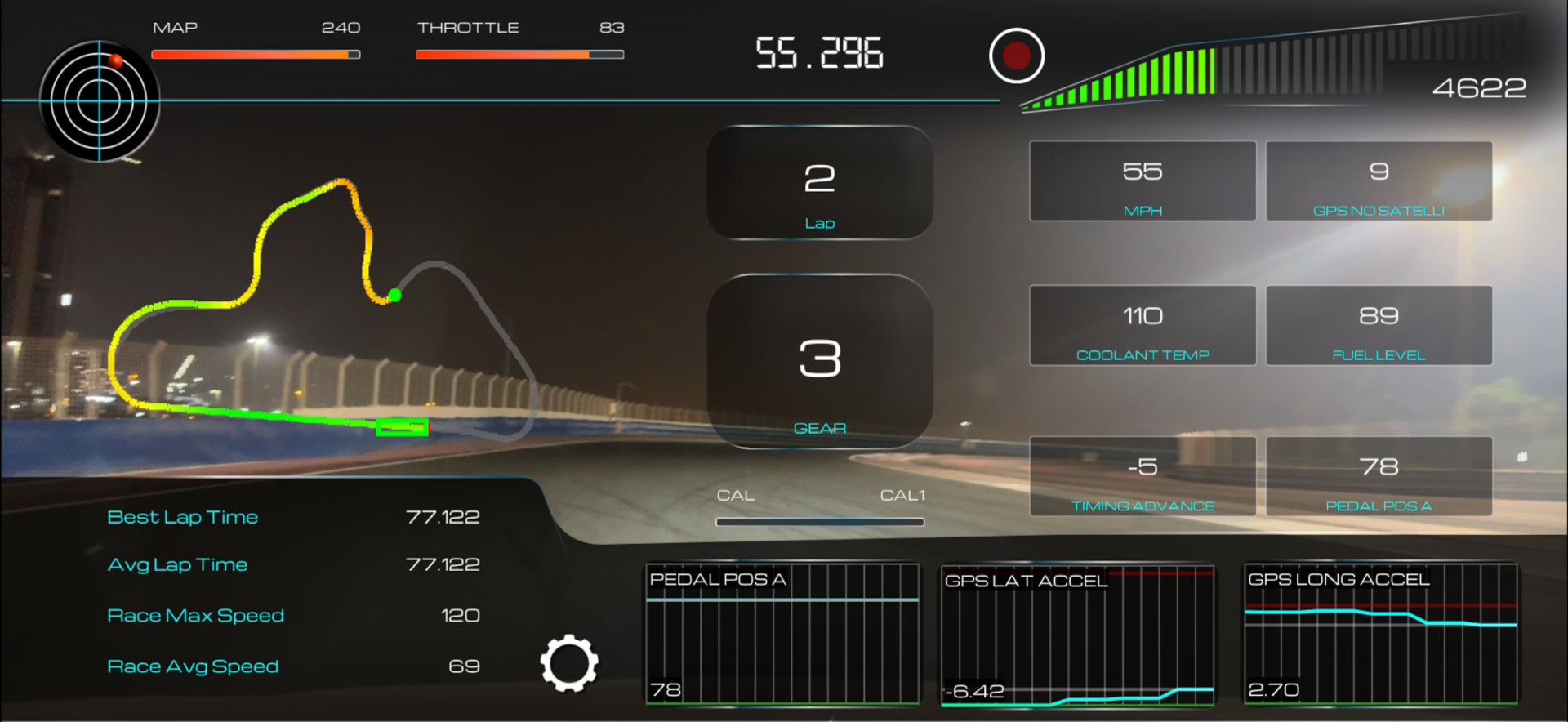

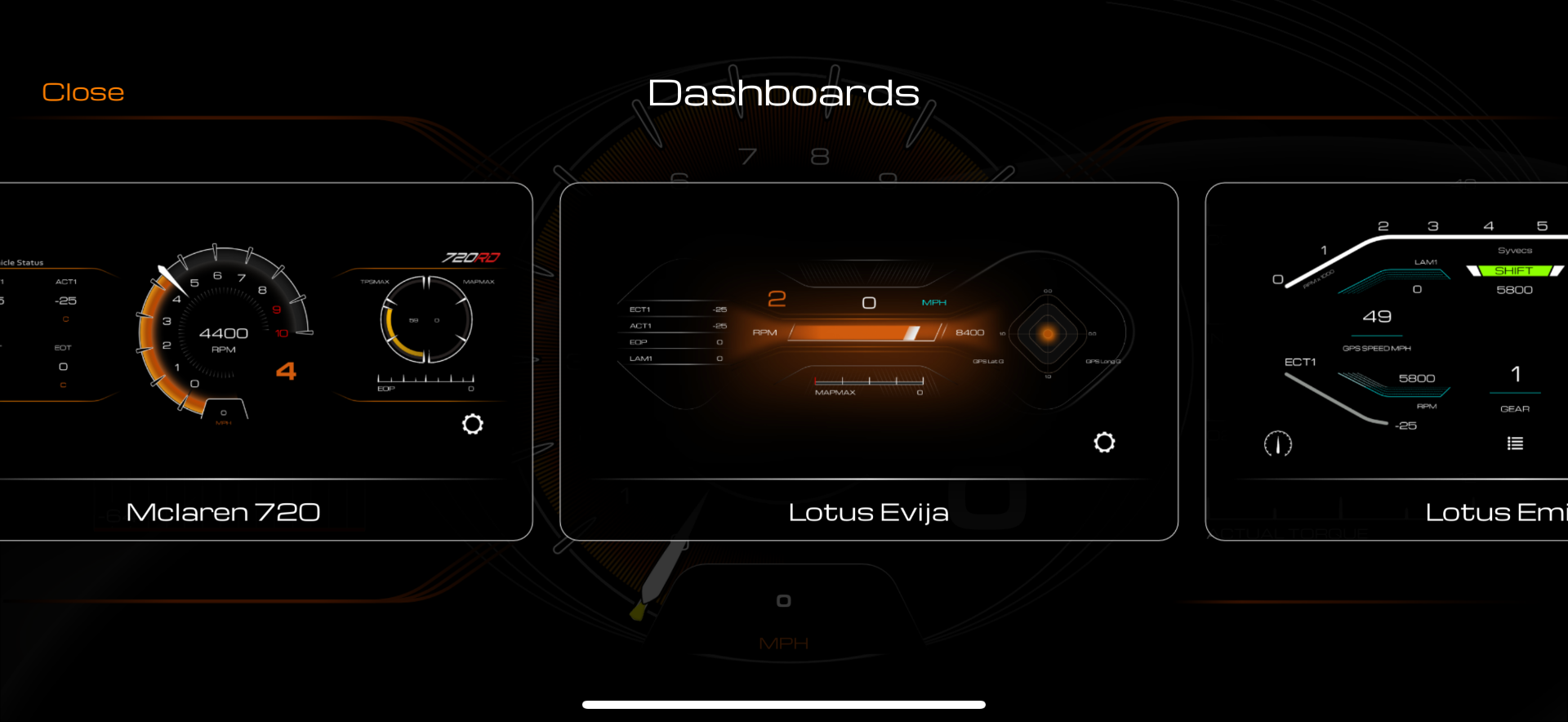

Customizable Dash Layouts
Multiple dashboard templates, all fully configurable
Any data point can be displayed (e.g., RPM, temperatures, pressures, GPS speed)
Warning & Alert System
Define thresholds on any CAN or internal sensor value
Receive visual/audible alerts when limits are exceeded (e.g., oil pressure low, over-rev)

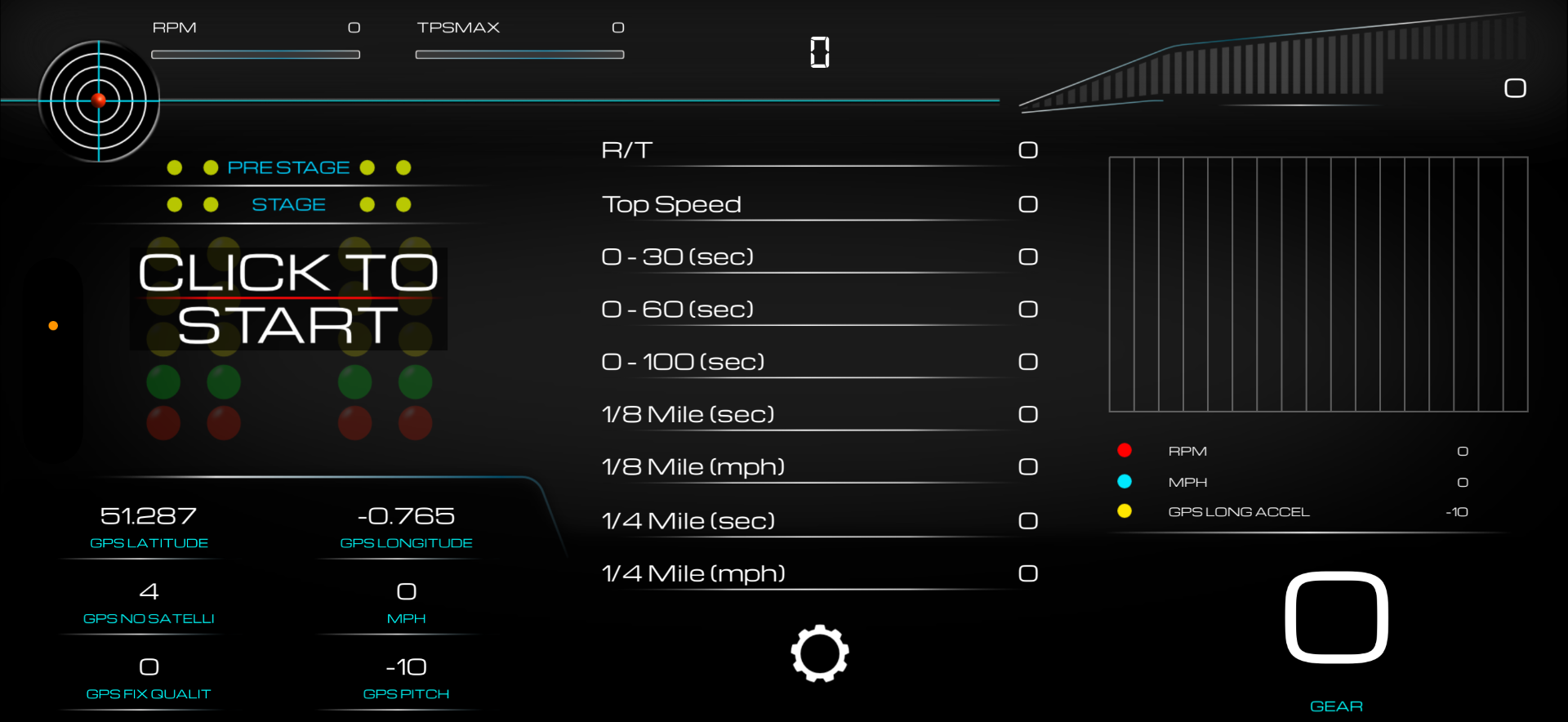

Performance Measurement
If a Syvecs 100hz GPS Module is already fitted with a Syvecs ECU then the following is possible, if not a Syvecs GPSBT is needed for below
Calculate 0–100 km/h, 100–200 km/h, ¼ mile times in real time
Drag Tree option to see reaction times also
Store best-run, quickest segment, and lap data
