The Syvecs Ford Fiesta MK7 ST Kit brings a new level of engine management control to the Ford Fiesta ST range with a complete standalone engine control module.
By simply pluging in the kit a whole new level of control is available allowing some of the following features:
– Flat Shift.
– Rolling Antilag / Pit lane limiter strategies, great for building boost on a roll.
– Adjustable traction control strategies based on lateral G and individual wheel speed monitoring.
– Adjustable Launch Control.

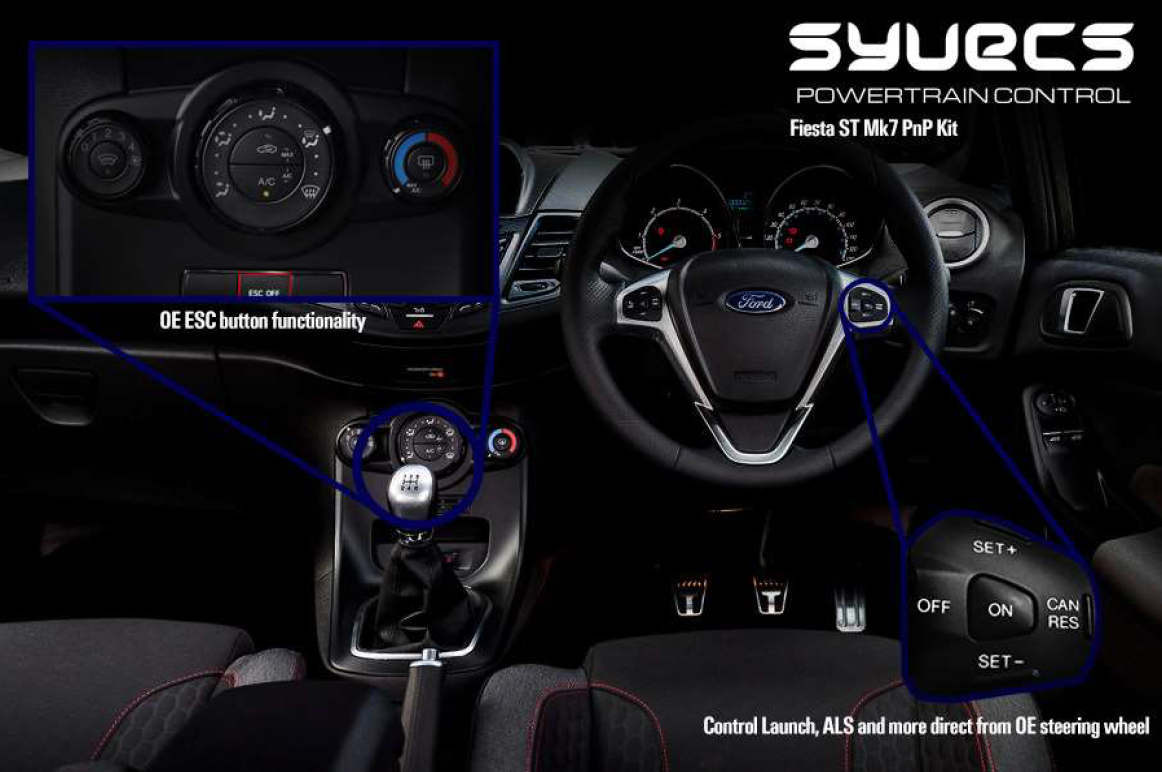

– 8 x switchable maps with the ability to select desired engine map, boost level, traction and launch control levels through steering wheel buttons.
– Direct injection and port injection support.
– Adjustable knock control, DI Pump Control, Injection angles for modified engines.
– Live Tuning of every aspect of the engine’s calibration.
– Fully adjustable Launch control with Anti-lag strategies and Ramp in Maps.
– Full Variable Valve Timing control.
– Flex Fuel control.
– Fully functional with every other ECU on the Car.
– Closed loop Lambda Control.
– Fully adjustable closed loop boost control with launch level adjustments and trims for turbo speed, air charge, engine coolant temp, exhaust gas temps etc..
– Built in data logging using a market leading analysis software of up to 8 hours, with data rates at up to 1000hz.
– Antitheft and valet modes.
– Super fast connection via RJ45 Ethernet port for live tuning anywhere in the world or even remotely if on track if connected to a wireless unit.
– Configurable Engine Safety Trips on all important parameters like oil temperature, oil pressure.
– Fuel pump control of both main, and sub pumps, as well as Relative fuel pressure monitoring and limiting in the event of fuel pressure dropping on boost.
– 4 different Pedal to Throttle Angle maps with multipliers for different parameters e.g. speed. Again adjustable via steering wheel buttons.
– Configurable individual cylinder closed loop knock control, to suit any cylinder modification with adjustments to frequency, windows for listening and gains for each cylinder. Ability to trigger full cylinder shutdown in severe knock conditions.
– Run up to 7bar map sensors.
– Control high or low Independence injectors.
– Control up to 4 additional injectors for high power installations where staged injection may be required.
– Ability to fit any type of external sensor to monitor and trigger safety trips from anything from crank case pressure to damper position.
– Ability to use any size DBW throttle body e.g. Chevrolet LS7.
– Wet and Dry – Wet and Dry nitrous control with ability to drive solenoids directly and control n20 heaters via pressure monitoring.
– Ability to control any external vehicle features based on sensor inputs e.g. Adjustable rear wing linked to G force or exhaust control valves.
– Connect any race series dash or even one of our partners’ Touchscreen CANBUS adjustment /display units.
– View any input live with built in scope up to 1000hz.
And much, much more!
Does the OE dash (Tacho, Speedo etc) still work like stock?
Yes the kit retains all OE functionality of the dashboard, including warning lights.
Can I add additional port injectors?
Yes, you can add 4 port injectors to compliment the GDI injectors as secondary injection.
The below pins can be used and assigned as the secondary injectors. Some reconfiguration is required as explained below.
– Fuel #09 Pin34 – currently free.
– Fuel #10 Pin6 – Remove ‘Bypass Solenoid’ and connect this to ground.
– Fuel #11 Pin33 – Remove ‘Turbo Bypass (BOV) and connect the vacuum source directly to the engine.
– Fuel #15 Pin20 – Remove ‘Canister Purge’ – vent canister purge to atmosphere.
Please be aware you must not plug in the injectors until the calibration in the ECU has been updated for 8 injectors.
Do I lose cruise control?
No you will still retain cruise control functionality inc. up and down functionality as per stock.
Can I run Flex-Fuel?
Yes, you can add a flex fuel sensor so varying ethanol fuel blends can be used.
o The sensor requires 12v switched power (Pin 56,57) and good ground (Pin 1,28,29,55) at the ECU preferably.
o Signal can be wired to Pin8 AN#16
o Assign to Fuel Composition Sensor (fuelComp)
o Enable the FlexFuel strategy and calibrate accordingly.
I’ve run out of inputs, can I expand the system?
Yes, you can fit the Syvecs I/O Expander; you will then gain 10 LSD/HSD outputs, 4 Half-Bridge (combinable to 2 Full-Bridge) and 10 Analogue inputs (5V, Thermistor or Switch)
Wire the expander to CAN 2 on the S-GDI.
- CAN2H Pin80
- CAN2L Pin79
