Syvecs KT8 V3 - 8 Channel EGT Module

Syvecs KT8 V3 - 8 Channel EGT Module

Code: SYV-KT8-Rev3

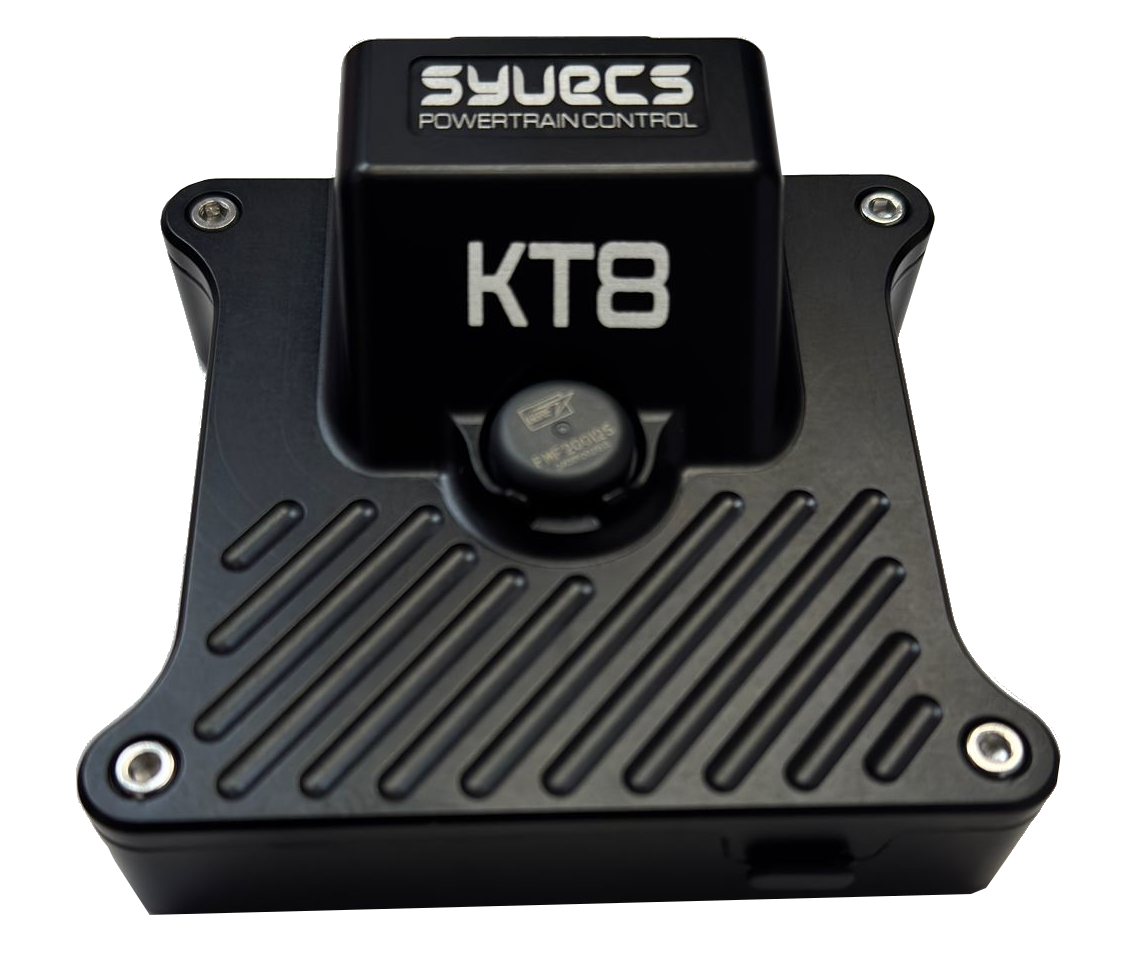

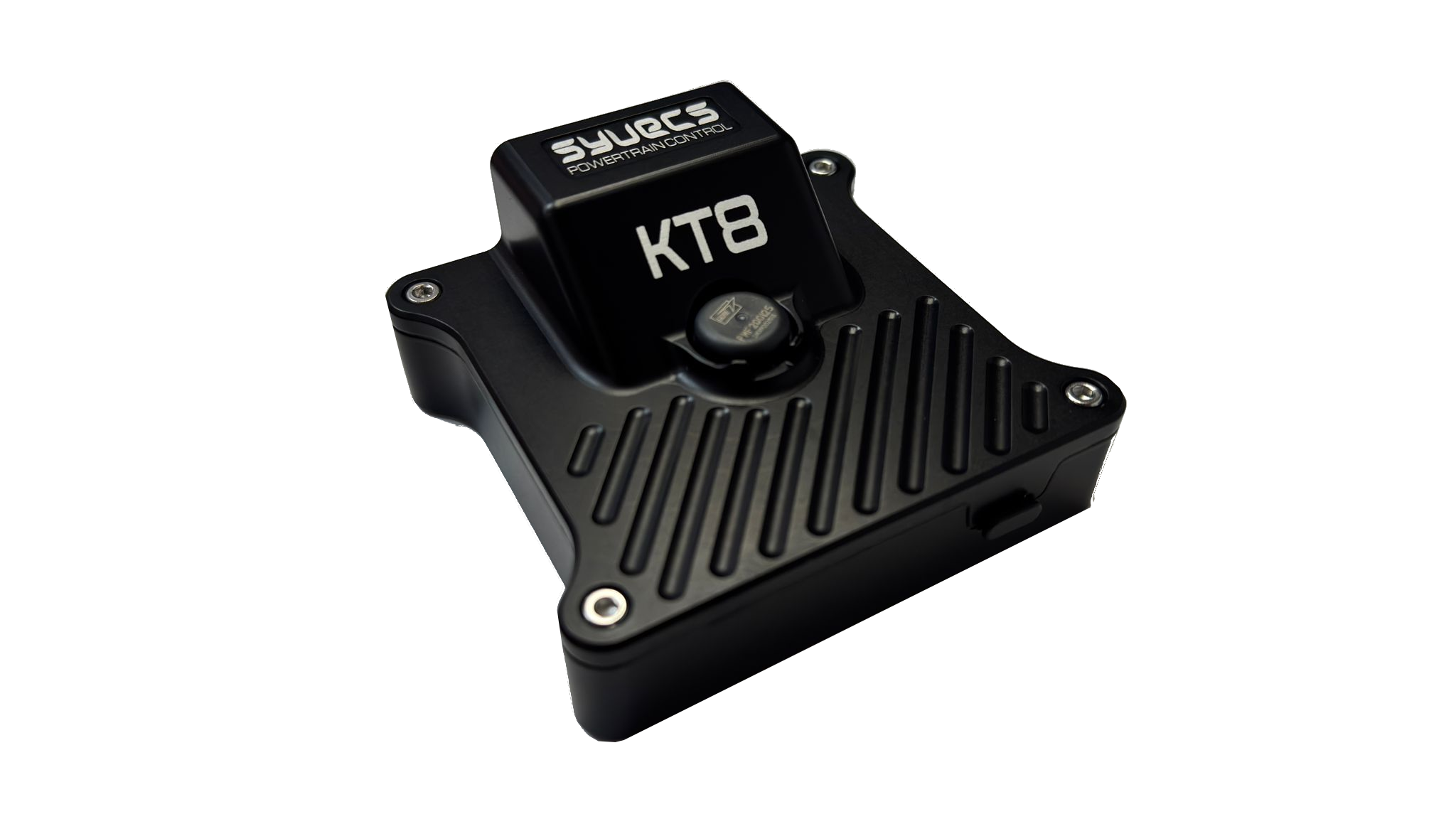

The all-new Syvecs KT8 V3 is the latest evolution of our proven KT8 platform, bringing powerful upgrades and expanded functionality in a compact, waterproof package.

In Stock
Share (0)
Total: 0 Total: 0 Total: 0

Description

Introduction

The all-new Syvecs KT8 V3 is the latest evolution of our proven KT8 platform, bringing powerful upgrades and expanded functionality in a compact, waterproof package. Building on the success of the KT8 V2, the V3 now features full standalone capabilities, USB-C communication, and complete compatibility with Syvecs Scal software, making it a versatile solution for both OEM integration and aftermarket control strategies.

Equipped with 2 x CAN Bus interfaces supporting speeds from 250kb to 1.33Mb, the KT8 V3 allows seamless communication with a wide range of vehicle systems. It also includes 2 x fully configurable analog inputs and 2 x PWM outputs, enabling users to define custom control strategies and data logging solutions tailored to specific applications.

Whether you're expanding system functionality, adding extra IO to your main ECU, or deploying it as a smart standalone controller, the KT8 V3 delivers the flexibility, performance, and reliability Syvecs is known for.

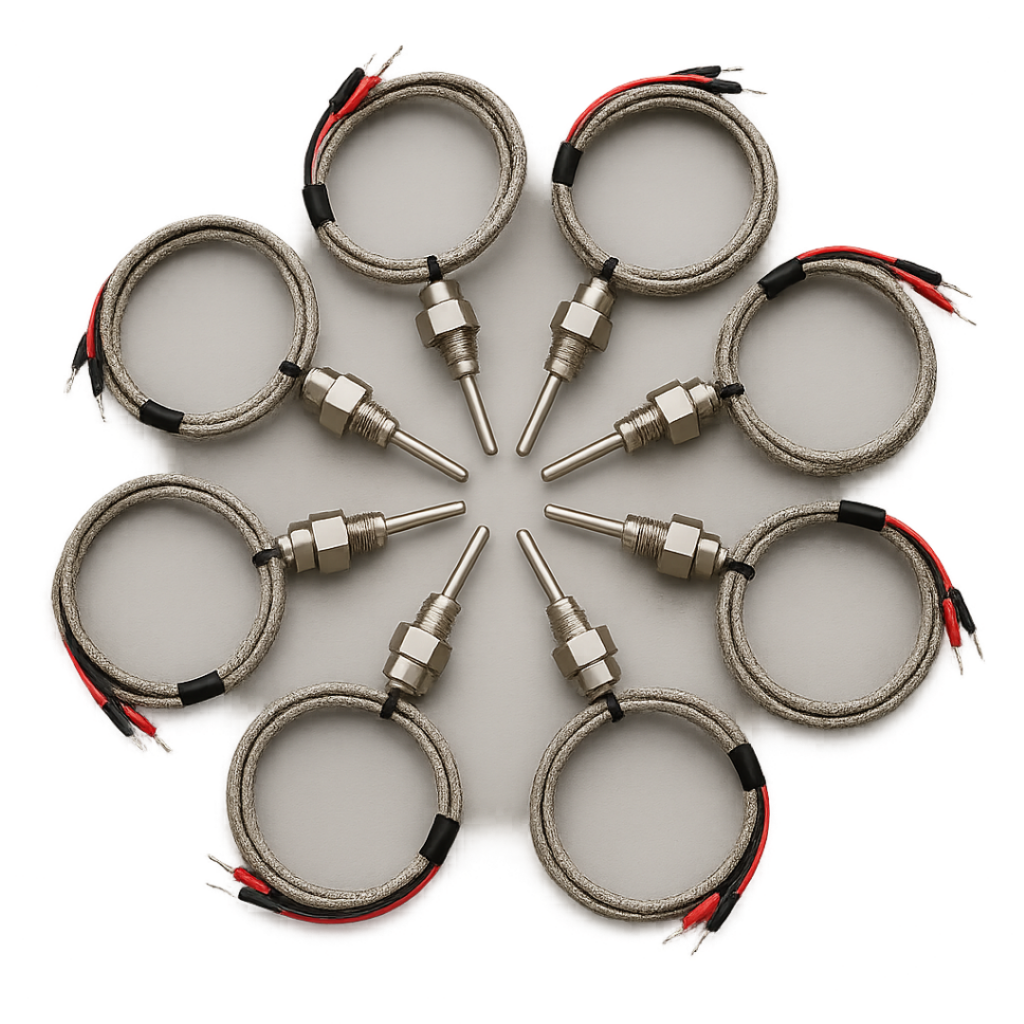

Up to 8 K-type sensors supported

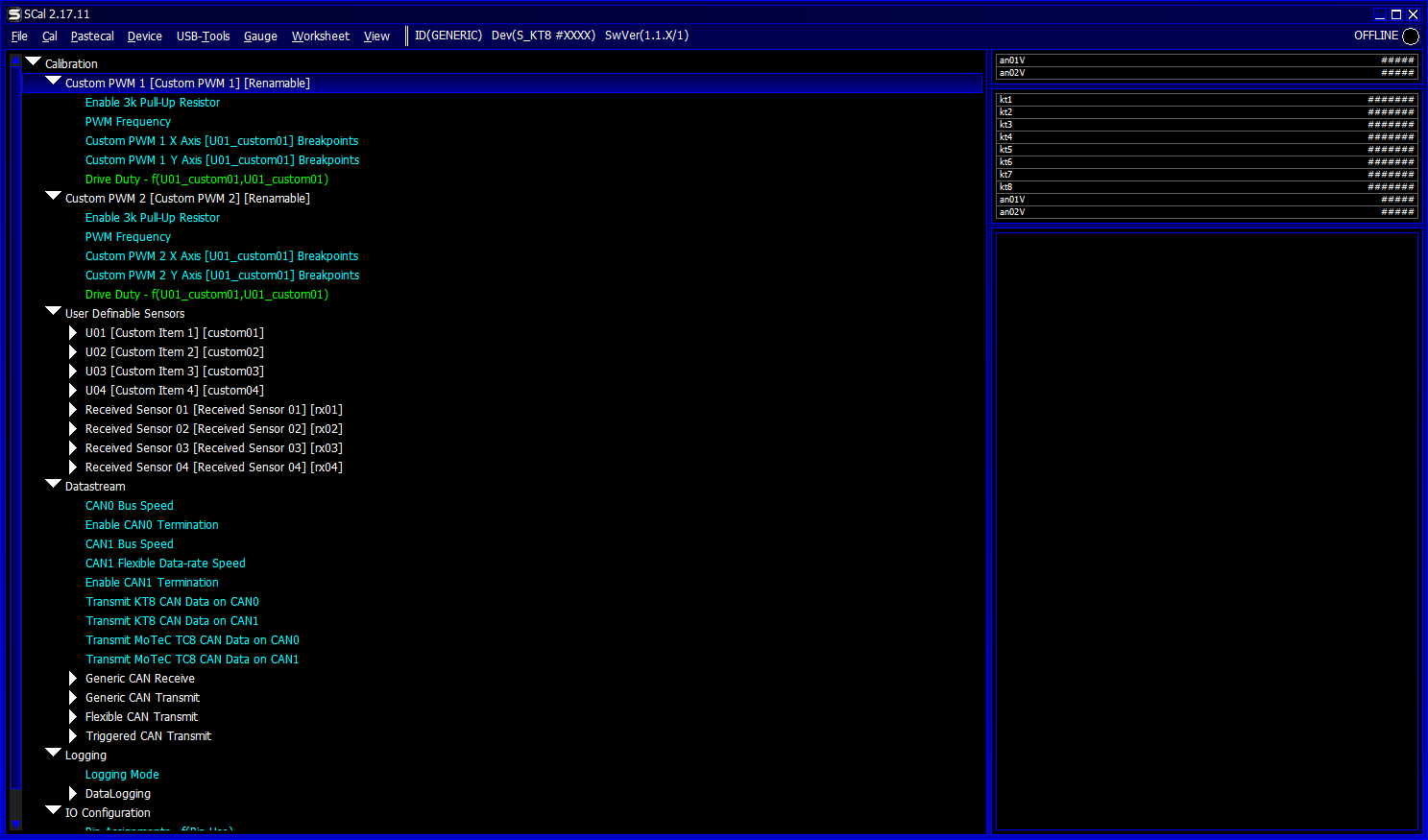

Intuitive PC Software

Advanced, yet easy to use software . Flexible Input and Output functions, Full CAN BUS configuration and datalogging options
Firmware and Software gets updated regularly, check out http://www.syvecs.com/forum/ to make sure you have the latest!

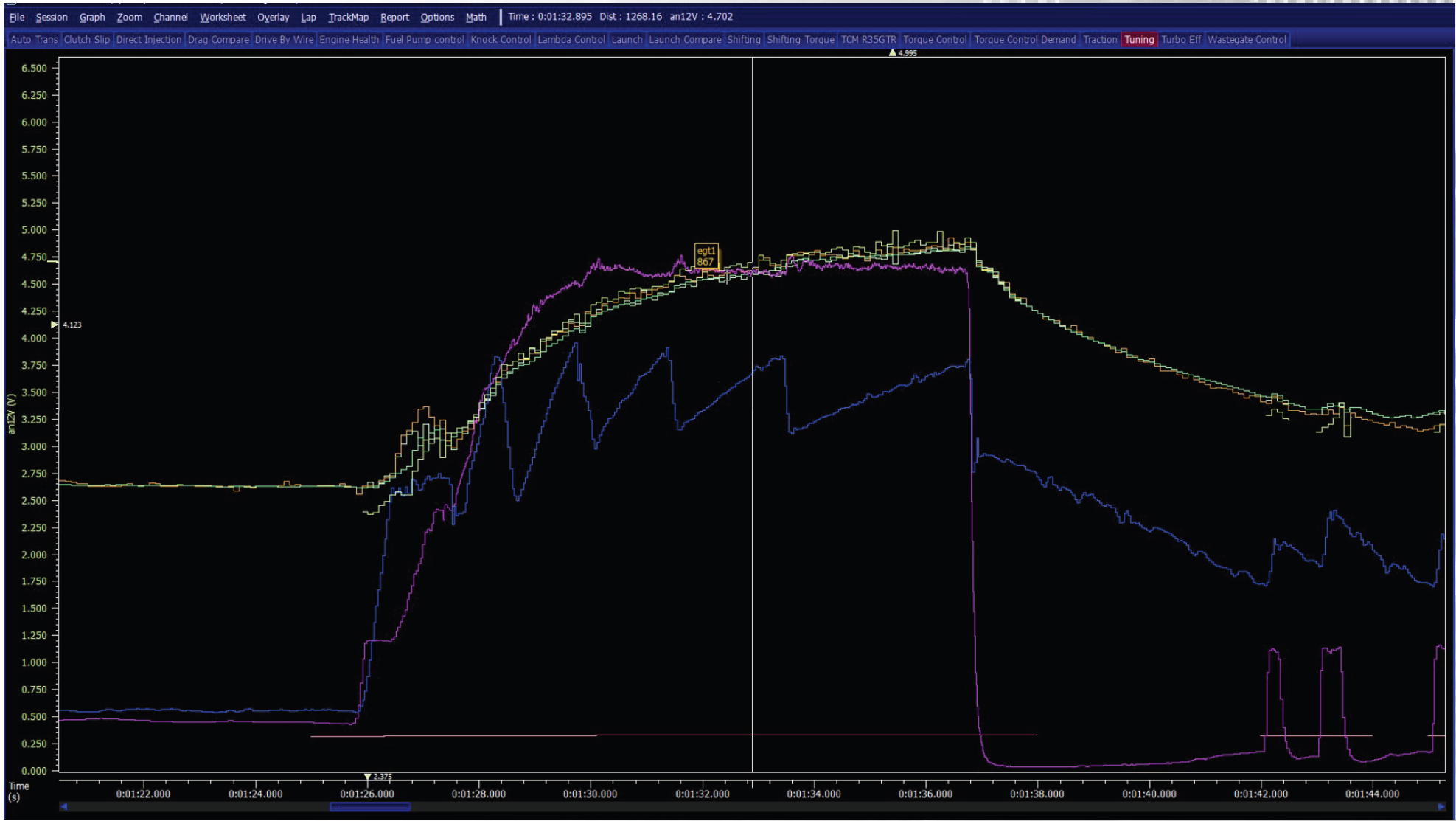

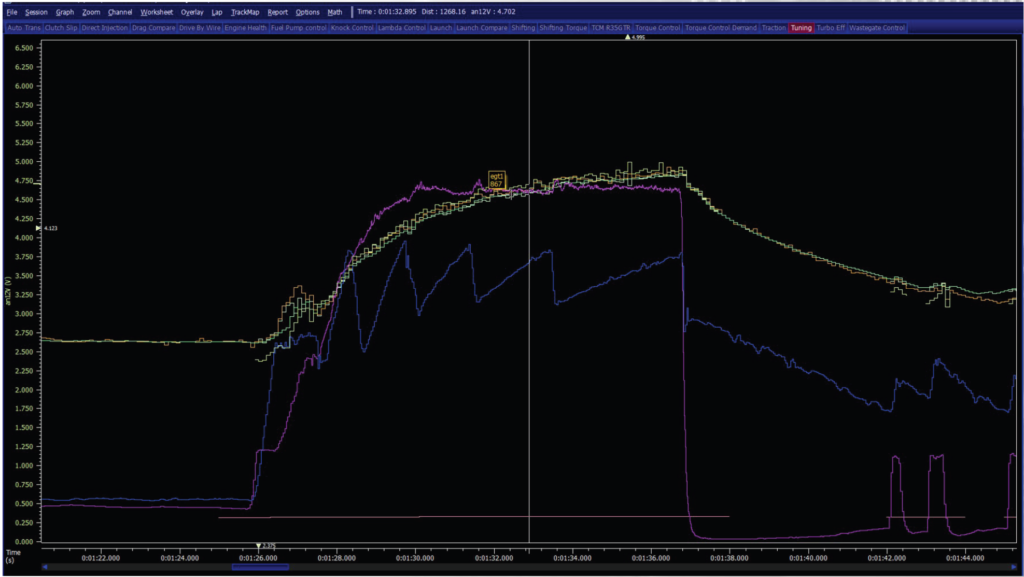

DataLogging

The Syvecs KT8 V3 features high-speed, real-time datalogging capabilities via Syvecs Scal software, allowing users to log and analyse data after with our Sview Program

 Up to 500Hz logging rate directly to PC



Specifications

Inputs

2 x Analogue/Thermistor Inputs (0-5V) with software pull-up

8 x K-type Thermocouple inputs

Outputs

2 x PWM Outputs - 4Amp Peak (100ms) / 2Amp Continuous

Interfaces

USB C For Updates and Configuration

2 x CAN 2.0B, user programmable

Power Supply

6 to 26V ignition switched supply

Physical

90mm x 82mm x 43mm

Environmental

High-quality anodised CNC aluminium body with waterproofing

26Way Superseal Waterproof Connector

Additional information

Installation Manual

http://www.syvecs.com/downloads/KT8_V3.pdf
Software

https://www.syvecs.co.uk/forum/viewtopic.php?f=8&t=122&sid=ea2174f4b529c46b7779b5a0862148f7
