Syvecs Power Distribution units are designed to replace the use of a conventional relay boxs. It provides multi channel solid state logic driven processing, which is fully software configurable using our PDU cal tool. Features include logic inputs and power outputs with validation and debounce settings. RS232 and CAN provide communication to external displays and data loggers

In Stock

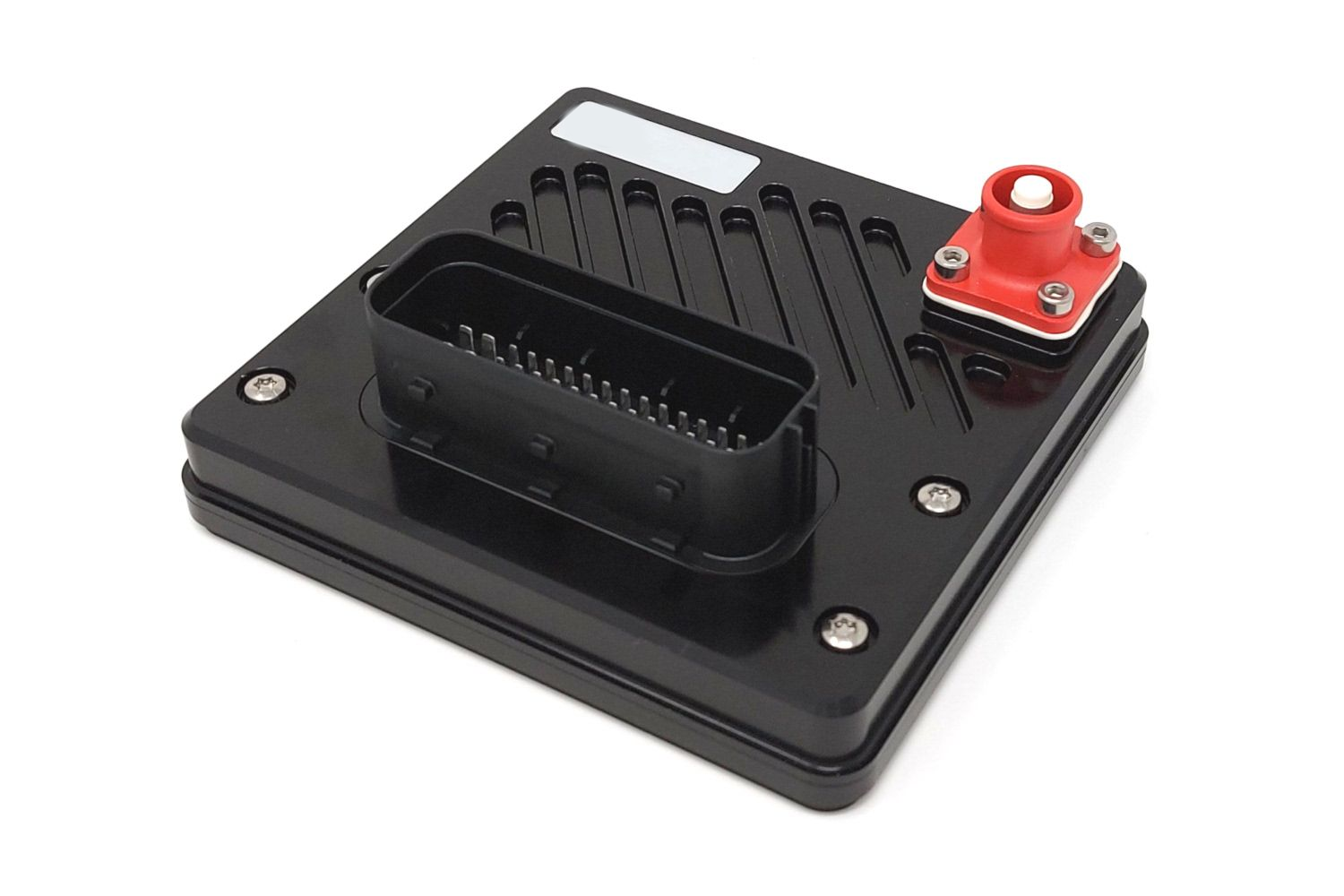

The PDUX2 offers advanced features such as the ability to sleep and wake via CAN bus messaging or by using hardware input pins as triggers. The PDU2X comes equipped with an impressive 16 programmable outputs in total, including 4 extremely capable multifunction outputs which can be defined by the user to operate in either discreet high-side or low-side switching, low-side PWM, Half or Full bridge operation. These flexible outputs, as well as the PDUX3 16 input channels, can be used to increase the I/O compliment of our S7, S8 and S12 products connected using our extremely fast slave link Canbus.

High power motorsport Power Distribution Unit (PDU). Combines a robust billet aluminium case and the very latest power driving technology with the highest efficiency in the industry. A total of 34 output channels with a max current capacity of 350A


16 main Power Outputs
4 multifunction high side, low side, PWM, H-Bridge outputs (35A continuous, soft-start inrush limiting 35A)
2 High Side outputs (35A continuous, hard-start inrush 60A)
10 High Side outputs (12A continuous, hard-start inrush 17.5A)
Output teaming to support very high current devices
2 Additional Low Side signal PWM Outputs
All outputs short circuit and thermally protected with multi-stage in-rush control
Combined diagnostic output with reset input
Up to 64 soft outputs via CAN


12 physical switch inputs or, when slaved, general purpose analogue sensor inputs including:
4x frequency measurement inputs
software selectable 3k ohm pull-up resistors
4x inputs capable of programmable “wake up” functionality
Dedicated wake pin
Up to 64 soft inputs via CAN with configurable validation and debounce time


2x 100Mbit/s full duplex Ethernet (can be used as Ethernet switch)
3x CAN 2.0B
RS232C serial interface


 6.56V to 20V input voltage (12V option)
6V-30V input voltage (24V option)
Dedicated logic power input
Regulated 5V sensor supply output with short circuit protection

1 Leavyseal connector with a total of 62 pins
Amphenol SurLok Power Stud
Machined Aluminium enclosure
135x125x50mm (including connectors)
Operating Temperature up to +85C
