GDI12 - 12 Channel GDI Driver

Code: SYV-DI12

The Syvecs 12 Channel GDI Driver allows 12 GDI Injectors to be driven all from one box, designed to work with all GDI Solenoid injectors including parts from VAG Group, Ford, GM and Bosch via Updatable Software which can be flashed to the Unit via a USB in the field but best done at build-time as the units are IP67 sealed at shipping.

In Stock

Description



The Syvecs 12 Channel GDI Driver allows 12 GDI Injectors to be driven all from one box, designed to work with all GDI Solenoid injectors including parts from VAG Group, Ford, GM and Bosch via Updatable Software which can be flashed to the Unit via a USB in the field but best done at build-time as the units are IP67 sealed at shipping.

Designed to work with all types of Engine Management system, the input stage of the driver for each GDI Injector output can receive either IGBT (Pull to Ground) or TTL (5v).

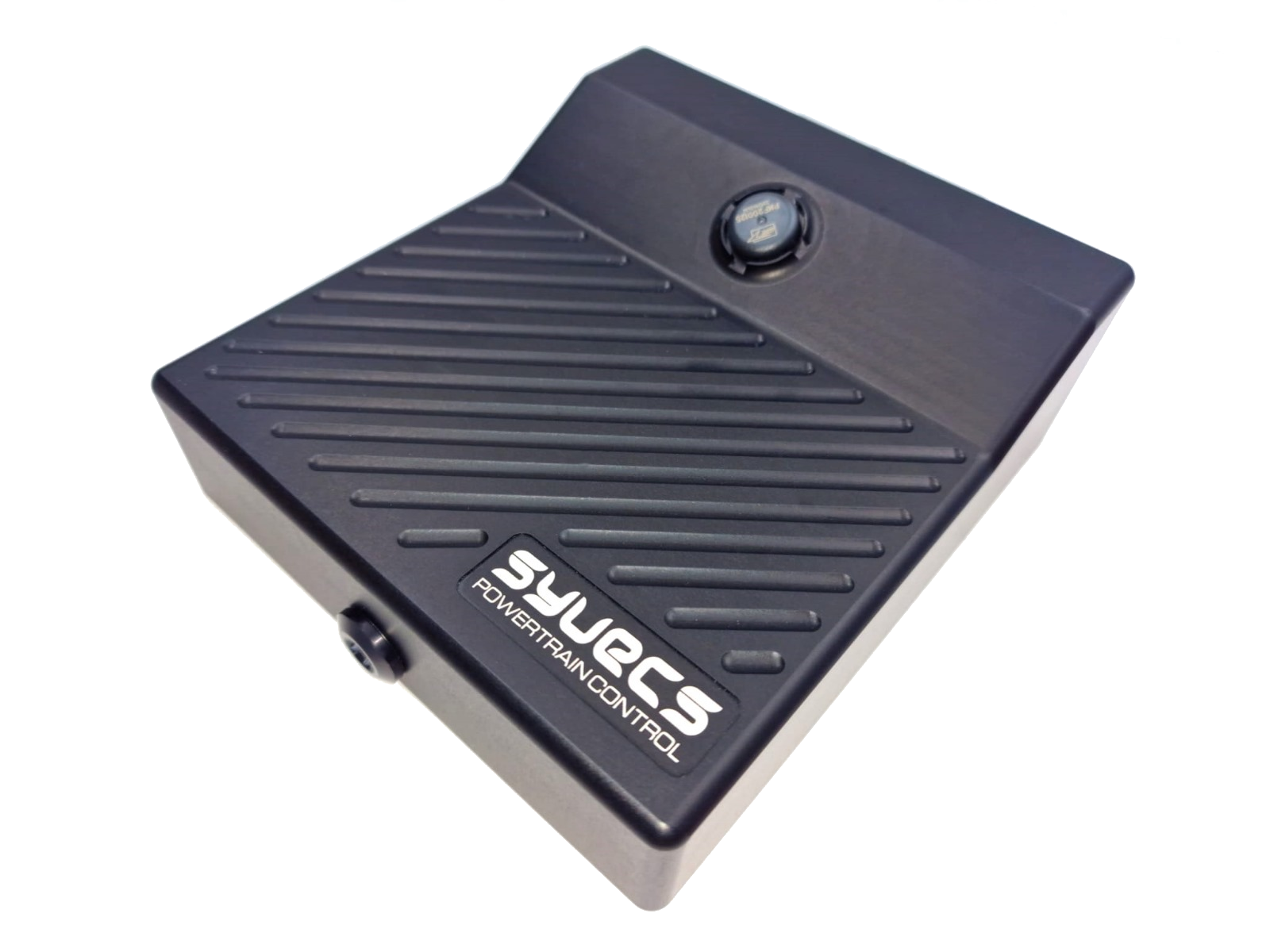

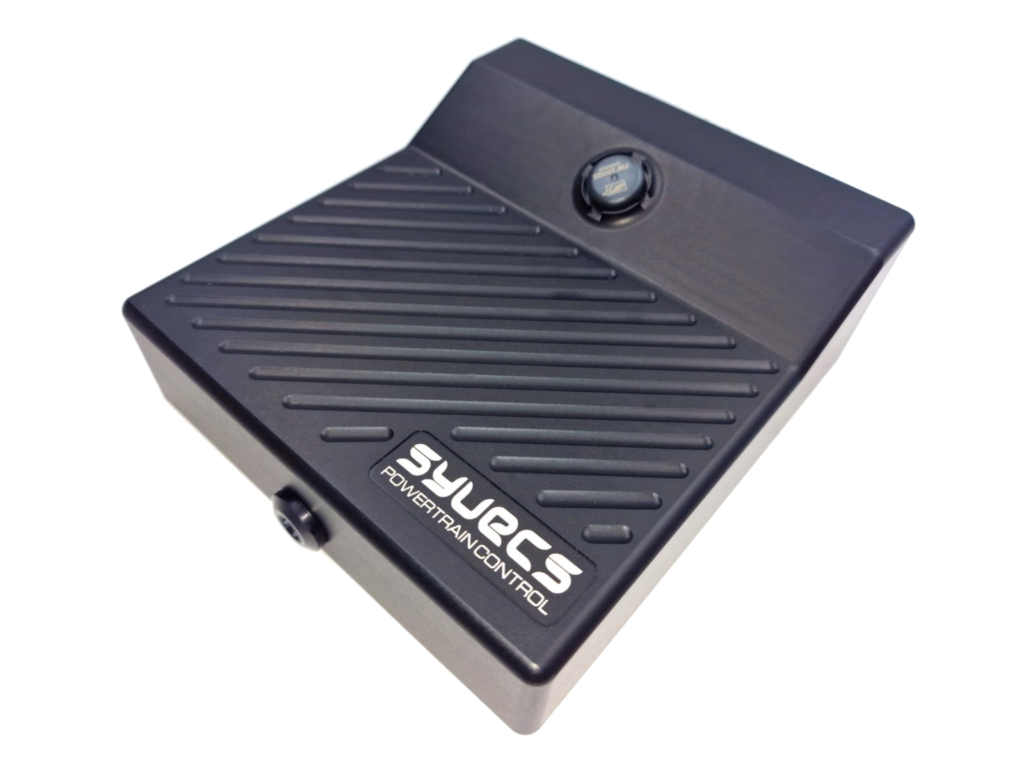

Packaged in a lightweight CNC billet aluminium case with a waterproof 35way AMP Connector. Automotive spec -40C to 125C

Default Configuration = 10Amps Boost @ 65v, 6Amps Peak, 4Amps Hold

Maximum available current 20Amps

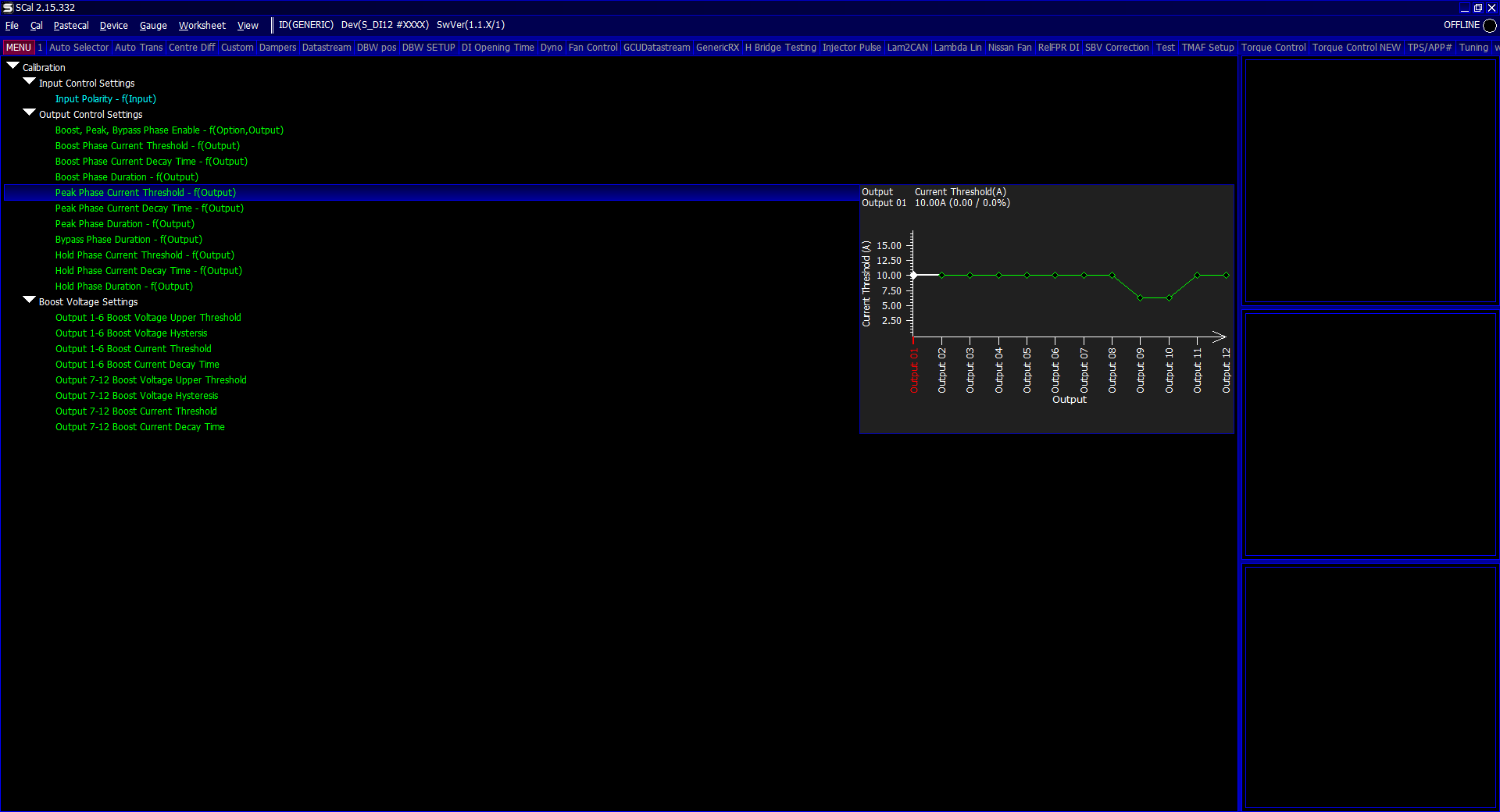

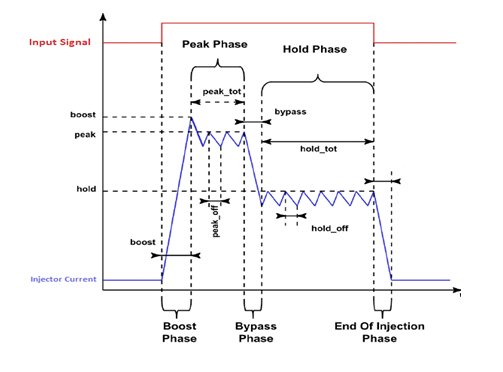

Adjustment of any of the following parameter can be done to suit any Solenoid Injector.

Current threshold in Boost Phase
Peak Current threshold in Peak Phase
Hold Current threshold in Hold Phase
Fixed time for high side switch off in Peak phase
Fixed time for end of Peak phase
Bypass Fixed time for Bypass phase
Fixed time for high side switch off in Hold phase
Fixed time for end of Hold Phase (timeout)











Additional information

Installation Manual

http://www.syvecs.com/downloads/Syvecs_GDI12_Driver.pdf
