External WG correct way around...

Post by scott » Wed May 22, 2013 1:33 pm

Just looking for some confirmation that what I have here is in fact correct....

Summary:

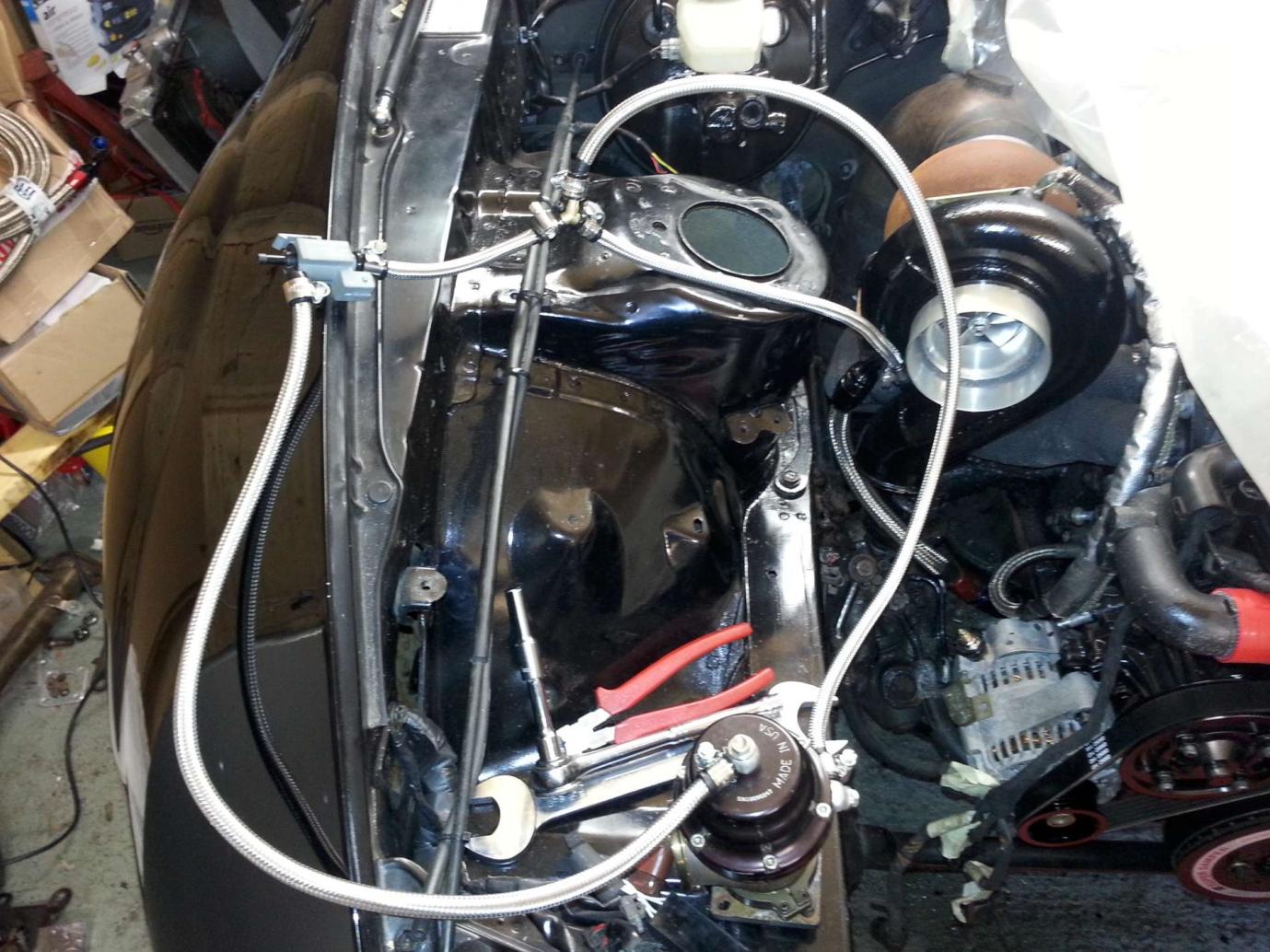

Turbo compressor pressure split to solenoid IN (metal port) and wastegate lower side port.
Solenoid COM (side of the solenoid) to wastegate upper port.
2013-05-17 16.18.47.jpg
2013-05-17 16.18.47.jpg (200.19 KiB) Viewed 3519 times
Cheers
