Search found 405 matches

by pavlo
Fri Feb 08, 2019 4:02 pm
Forum: S8 Technical
Topic: Bosch 2-wire TBV settings
Replies: 8
Views: 1852

Re: Bosch 2-wire TBV settings

Because an idle valve is a proportional device. The diode stops the back EMF, (I think) the back EMF from the collapse the magnetic field will effect the field being reestablished during the next pulse, so you're average field strength is reduced. What we want is a more of an averaged constant curre...
by pavlo
Wed Jan 30, 2019 9:22 am
Forum: General Syvecs Chat
Topic: Launch Control Settings
Replies: 73
Views: 11558

Re: Launch Control Settings

^^^^^^^^^^^
What he said
by pavlo
Tue Jan 29, 2019 2:16 pm
Forum: S8 Technical
Topic: Bosch 2-wire TBV settings
Replies: 8
Views: 1852

Re: Bosch 2-wire TBV settings

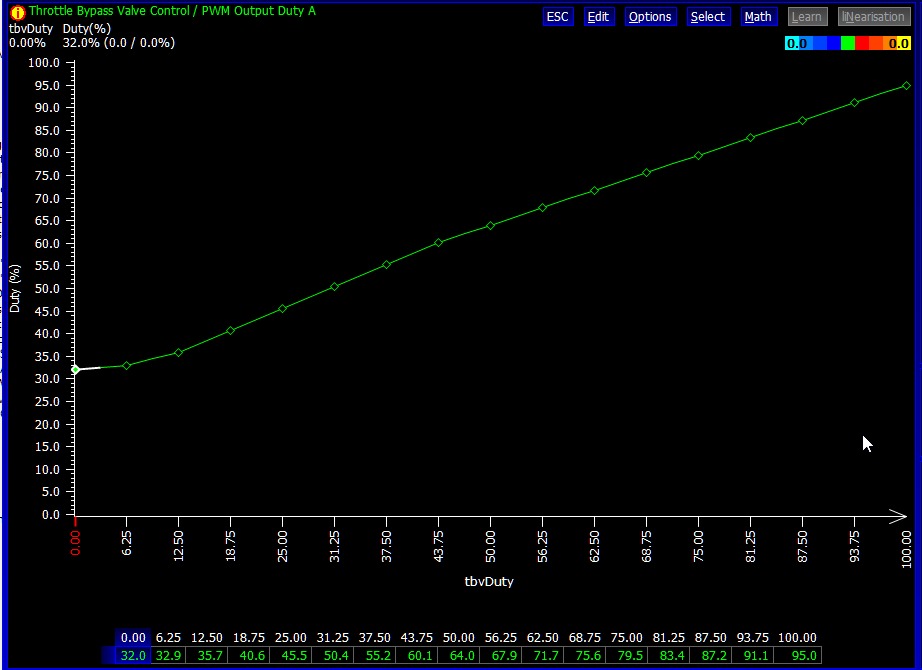

I used 300hz on a 2wire valve, it absolutely needs a flyback diode to work properly. My PWM output looks like this:
bosch 2 wire.png
bosch 2 wire.png (31.13 KiB) Viewed 1762 times
by pavlo
Tue Jan 29, 2019 2:12 pm
Forum: General Syvecs Chat
Topic: Launch Control Settings
Replies: 73
Views: 11558

Re: Launch Control Settings

Not really Tim. In this case we are just using the vehicle speed as a stationary/moving status flag. If the GPS speed were 100% reliably then we could perhaps start to do some better things with it, as it becomes a "5th wheel" speed which can can peg RPM against. If you switch from a timer to an spe...
by pavlo
Sun Jan 27, 2019 1:53 pm
Forum: General Syvecs Chat
Topic: Launch Control Settings
Replies: 73
Views: 11558

Re: Launch Control Settings

Hi John, It's good to see you're taking in an interest in your setup again! The reason your activation speed is set so low is to try and overcome the delay the occurs due to the speed converter fitted on your car. When we initially set it up at Combe in 2014 that was causing a problem with prompt ac...
by pavlo
Mon Jun 11, 2018 11:31 pm
Forum: S6 GP/PnP Technical
Topic: Cam raw not changing
Replies: 2
Views: 1545

Re: Cam raw not changing

Cam phase comes from the exhaust cam and will be static on single MIVEC evo head.

You want to look at VVT1inRaw which is what you should use for fine tuning latch angles for the VVT.
by pavlo
Mon Apr 18, 2016 12:52 pm
Forum: General Syvecs Chat
Topic: Downshift Gear Cut
Replies: 5
Views: 6432

Re: Downshift Gear Cut

You may actually require a cut for a downshift, if you are under power! Later firmware versions have this option, and it works well. I would advise thought that full gearbox control is not something for beginners to set up. A few questions: This is an S8 right? And it is an S8 with full gear control...
by pavlo
Thu Apr 14, 2016 4:02 pm
Forum: S6-I / S6Plus Technical
Topic: Bosch LSU 4.9 Lambda Sensor
Replies: 4
Views: 6873

Re: Bosch LSU 4.9 Lambda Sensor

That really want's an option to just sort all that out for you!
by pavlo
Fri Sep 25, 2015 6:54 pm
Forum: Subaru
Topic: 99-00 s6pnp power supply
Replies: 5
Views: 7209

Re: 99-00 s6pnp power supply

Very likely to be an alarm issue, badly wired alarms route all the power through the alarm and it's not man enough for the job. Check slow blow fuses too, and earthing of engine to battery, and engine loom to engine (the ECU earths through the engine loom onto the inlet manifold.
by pavlo
Mon Sep 14, 2015 3:35 pm
Forum: S6 GP/PnP Technical
Topic: FP-Limp at 1.5 bar / 6000rpm
Replies: 20
Views: 30308

Re: FP-Limp at 1.5 bar / 6000rpm

Putting a hole in the ignition map is not the way to prevent stalling on syvecs, since the idle strategy has a proportional ignition correction for idle error, and a general idle ignition compensation to reduce the advance when in idle (which is temperature and run time depenedant). So removing the ...
