Thank you Stevieturbo. Started with closed loop disabled and got it dialled in a lot better. Adjusted a few more thing with closed loop, now 10x better. Not 100% perfect but doesn't cut out occasionally now.

Thanks again.

I thought if I could at least compare idle between two engines (both 2.0 imprezas) just in case there was anything blazingly different. I'm fairly sure whoever mapped this car originally is using settings straight off the example calibration provided with the software. Do you mean disable the closed...

I should have said after having a lightened flywheel fitted it doesn't idle as well as it did before. It's like it overshoots and undershoots its target rpm.

Hey guys. Would anyone be able to provide me with either a cal or even screenshots of their starting and idle parameters? I'd really like to compare them to mine and try some adjustments. Even a base map or something. I'm on an S6 pnp in a 2005 Impreza STI (2.0) As always any help most appreciated a...

Closest I've managed to get so far is to use the antilag. I've not quite got full pops and bangs yet. There is a Syvecs video on youtube showing how to set it up.

https://www.youtube.com/watch?v=2vuNp-aMsLA&t=350s

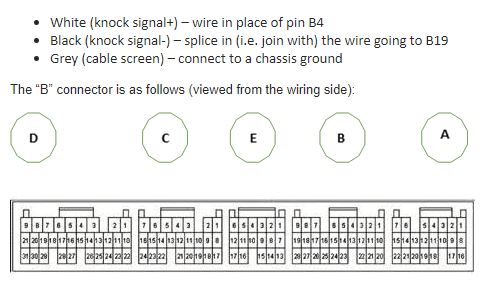

I hadn't even noticed. I apologise. Tims - Syvecs A = D B = B C = C D = A E = E Does anyone at Syvecs have a full PnP pinout with all the populated inputs and outputs? I'd quite like to know where my rats nest of wiring goes as I seem to have a lot of cut and rejoined wires. Thanks again Tim, after ...

Courtesy of Tim from JT Innovations:

http://www.syvecs.com/downloads/Pinouts ... inouts.pdf

That's the one I was looking at, it shows the 5 connector blocks. But unless there are pages missing from the PDF there is no mention of a knock input.

On the advice of my mapper, I am fitting the two wire Bosch wideband knock sensor. The stock sensor is a single wire and I've followed the colour back to the ECU. I assume this is where I connect the signal wire from the new sensor? Where does the other wire go? I apologise for asking the same quest...

Thank you. I also ordered the 3 port boost controller from you.

Not a lot left is stock on this car. I'm just trying to get these few bits wired on then Jamie can map it properly.
